Diverter Kit for John Deere H120: 1023E, 1026R and 1025R

$849.00

Diverter Kit for John Deere H120 Fitment:

Tractor Models: 1023E, 1026R and 1025R
Loaders: H120

Add a $25 discount when you combine our John Deere Diverter Kits with any of our Artillian frames, grapples or plow! Use Coupon Code: DIVE25

SKU: HDK-H120-PTL Categories: Hydraulic Diverter Kits for John Deere, Hydraulic Diverter Kits & Splitter Manifolds

Frequently Bought Together

Diverter Valve – 12VDC / 4 amp solenoid actuated hydraulic diverter valve

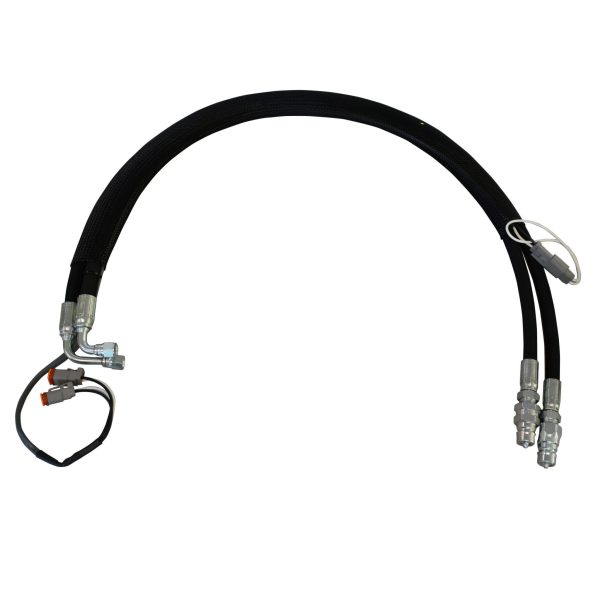

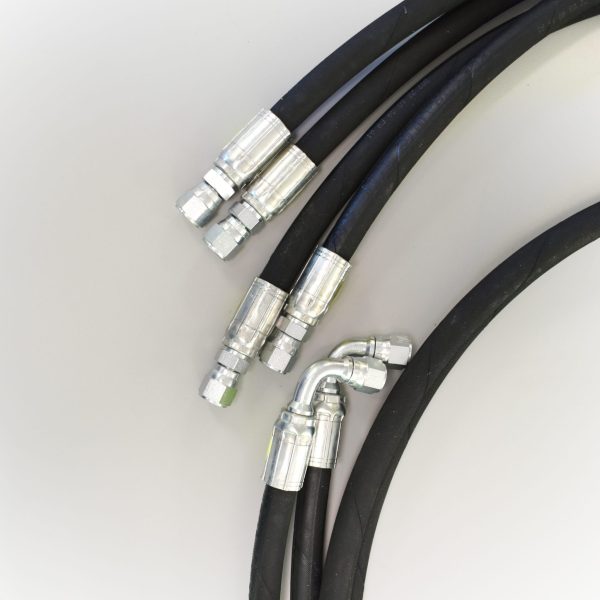

Hydraulic Hoses – Flexible hydraulic hose assemblies include genuine Deere dust plugs and Deere compatible quick disconnect fittings

Hose Protectors – Hoses ship fully assembled in protective sheaths, ready to install

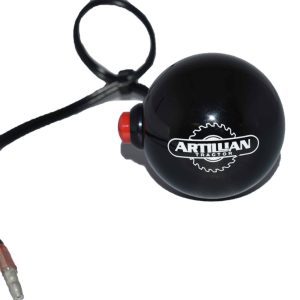

Push-Button Switch – A weather-sealed momentary push-button switch mounts to your tractor joystick, easily adjustable to your preferred position

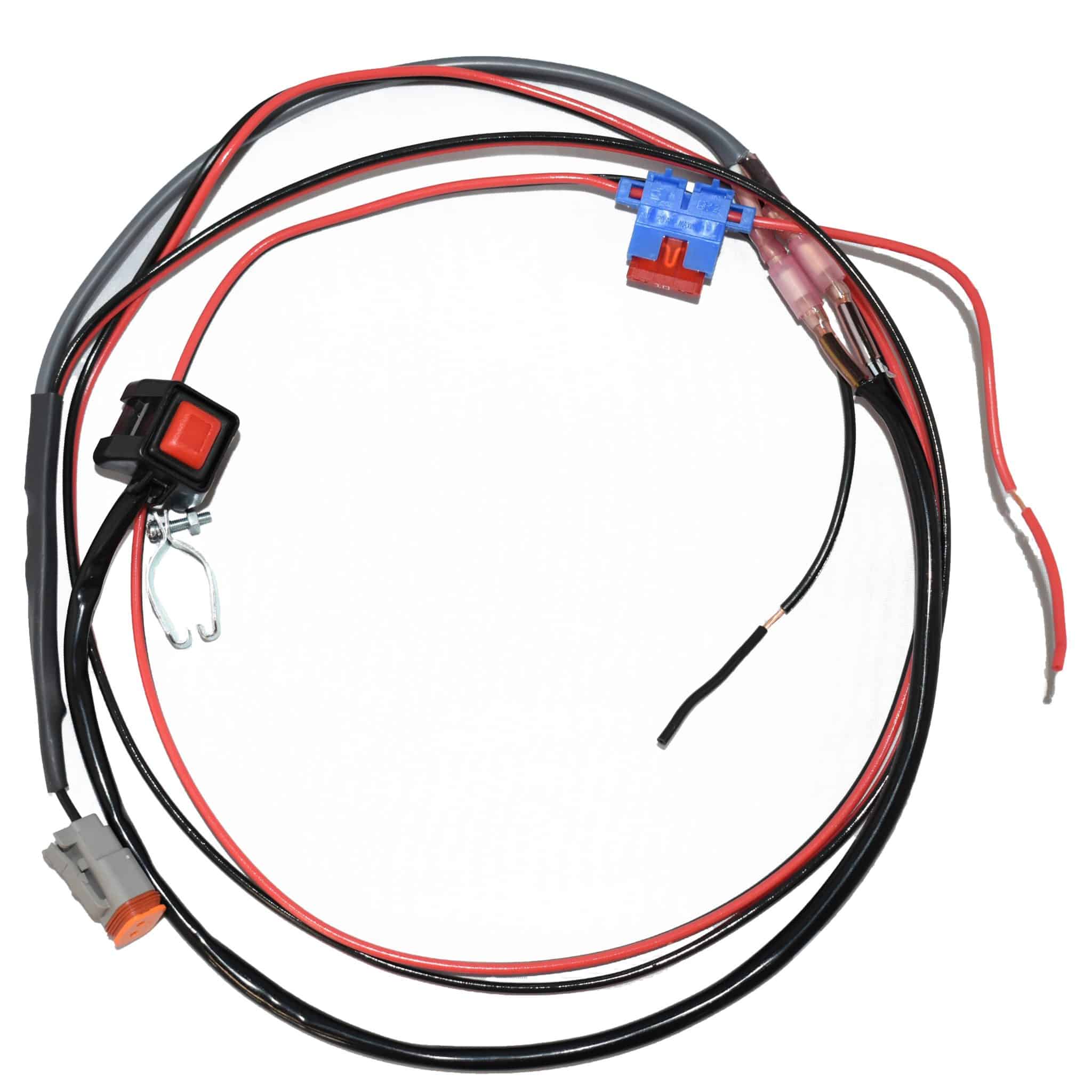

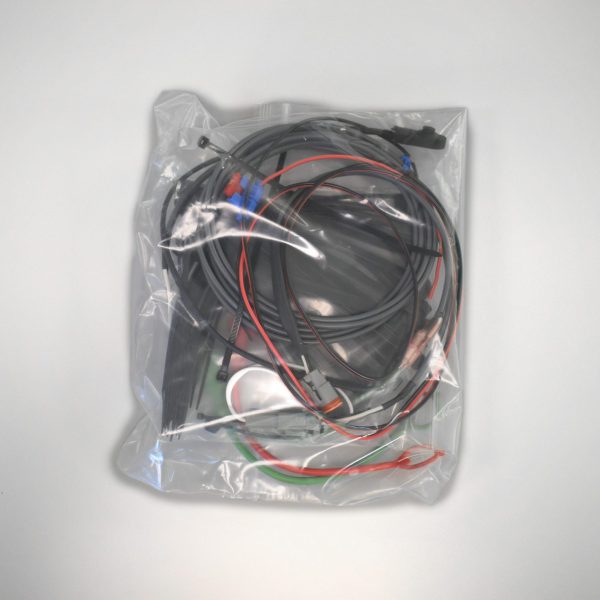

Wiring Harnesses – Exterior-grade long-life wiring harnesses with fuses and environmentally sealed automotive-style connectors

Pigtail Electrical Leads Come Standard (PTL version) – you provide the electrical connection

Aux Power Plug – Optional auxiliary wire harness kit available

Mounting Systems – Fully assembled, secure, and simple to install mounting systems for the diverter valve body, the push button switch, and the loader front quick disconnect manifold

Rubberized Interface – All contact points are rubber-coated to protect your tractor’s finish

UV Resistant Cable Ties – To last the life of your tractor

Approx. Installation Time – 2 hours

Installation Instructions – Step-by-step with illustrations

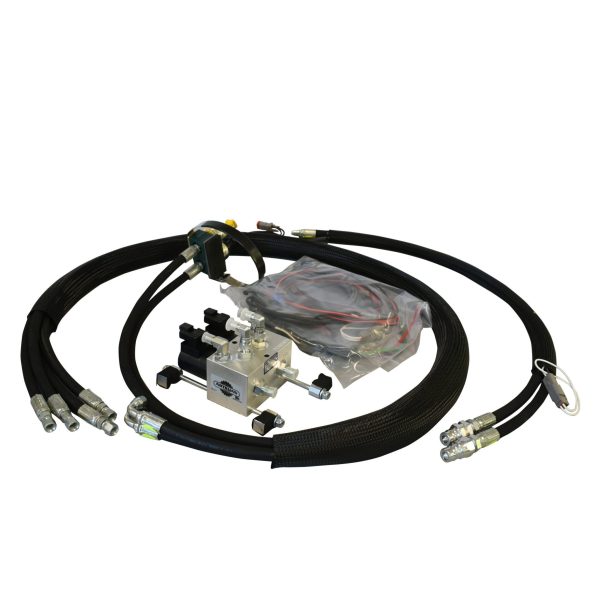

There are approximately 110 individual components in our quality diverter kits.

These components are assembled into 5 major assemblies, ready for you to install, with step-by-step instructions. It’s easy. No hydraulics knowledge is required.

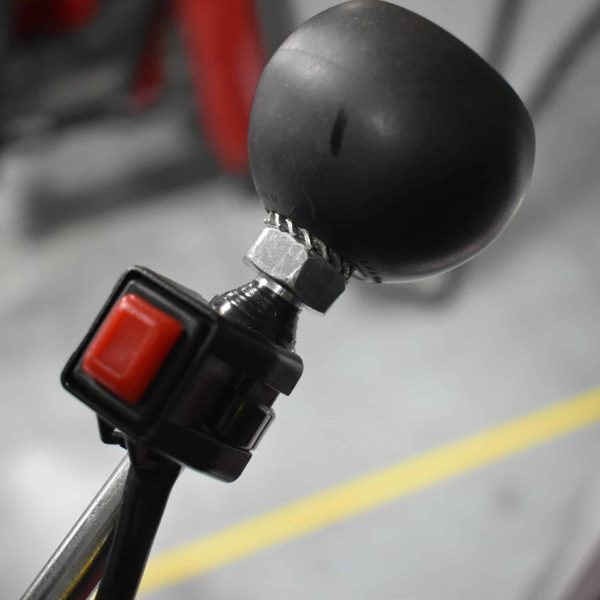

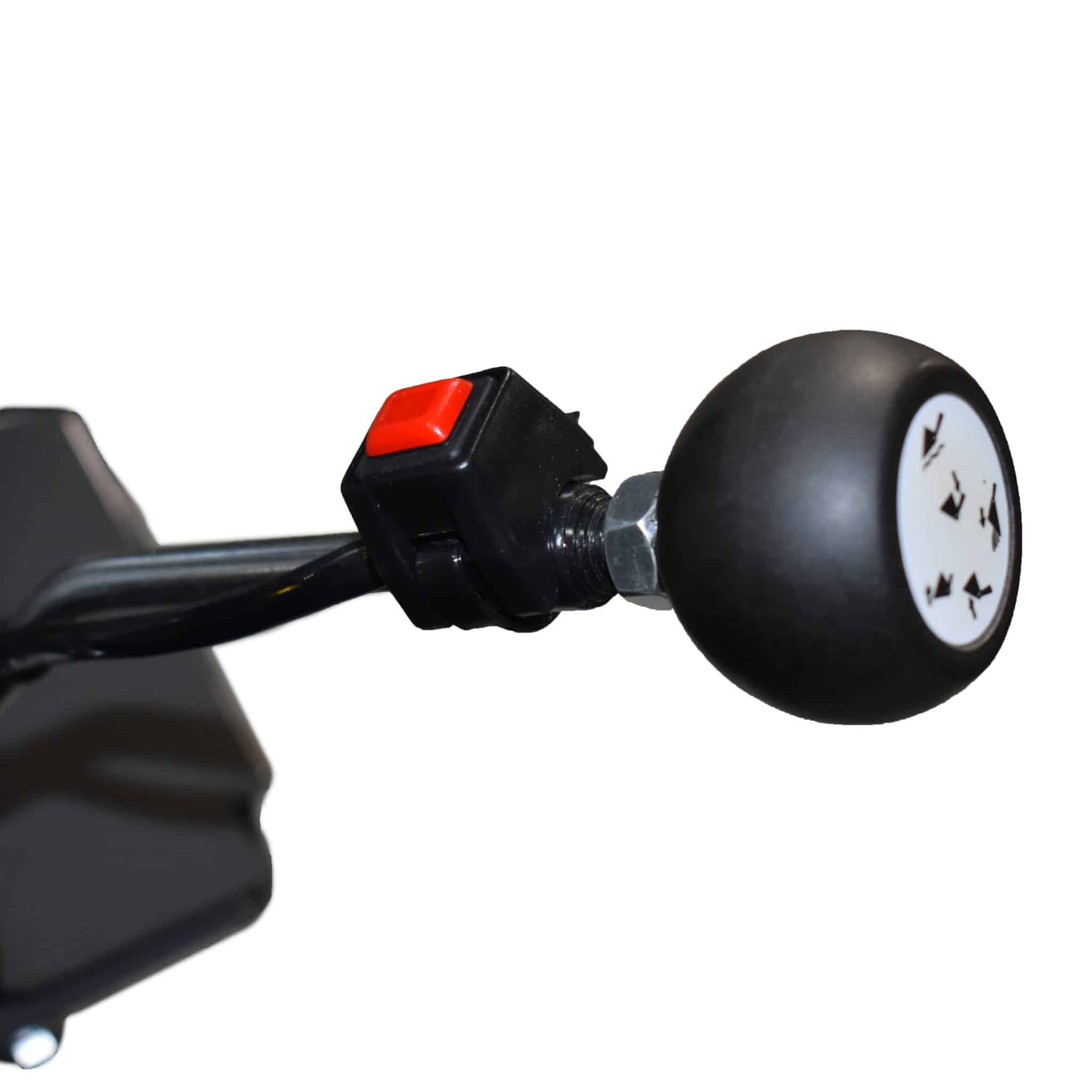

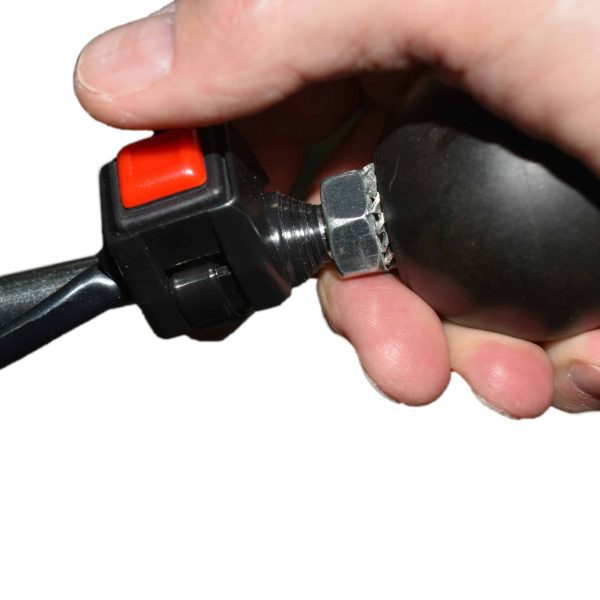

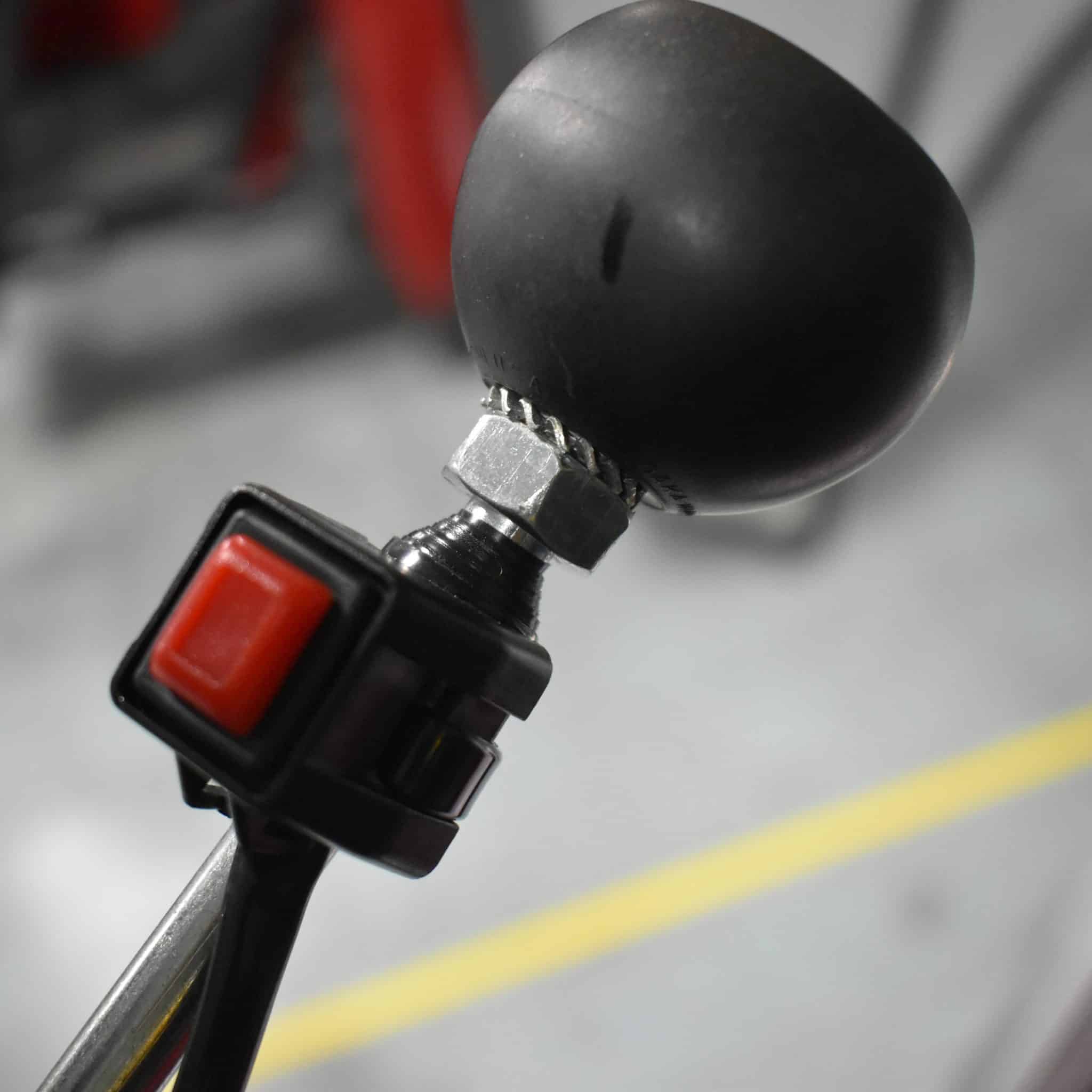

The actuator switch attaches to your loader joystick. It can be positioned however is most comfortable for you.

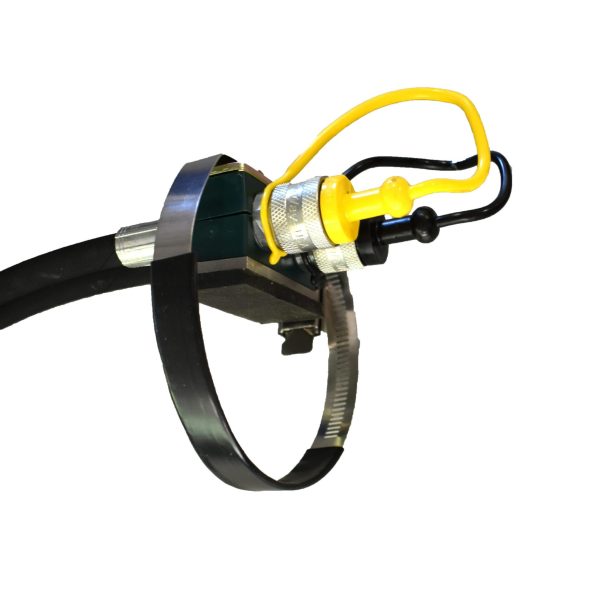

Connect your attachments to the ¼-inch female quick disconnects on the front manifold. John Deere color-matched dust plugs are included.

The diverter valve attaches securely to your loader using one of our proprietary mounting kits which allow for a fast installation with no damage to the loader finish.

WARNING: This product can expose you to chemicals including [name of one or more chemicals], which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

Diverter Kit for John Deere H120 comes standard with pigtail electrical wires (connect to 12v power yourself). An optional auxiliary wire harness power extension (“Cigarette Lighter” power plug) is available.

Add a third hydraulic circuit to your loader to operate grapples, plow adapters, or other hydraulic loader attachments.

The third function operates from a button on the loader joystick that diverts hydraulic flow to a manifold at the front of the loader. Release the button and normal dump and curl functions return.
