Made in the USA

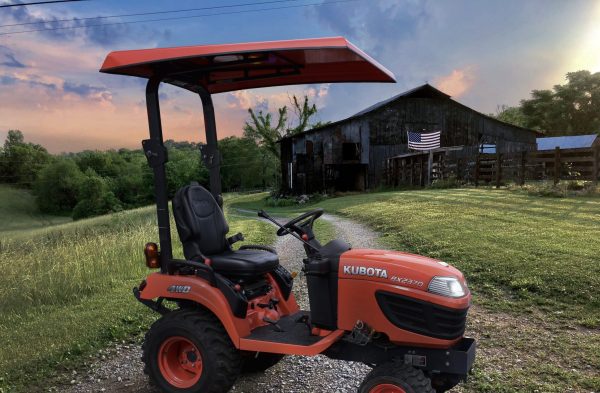

Universal ROPS-Mount Canopy — L & XL
$599.00 – $749.00

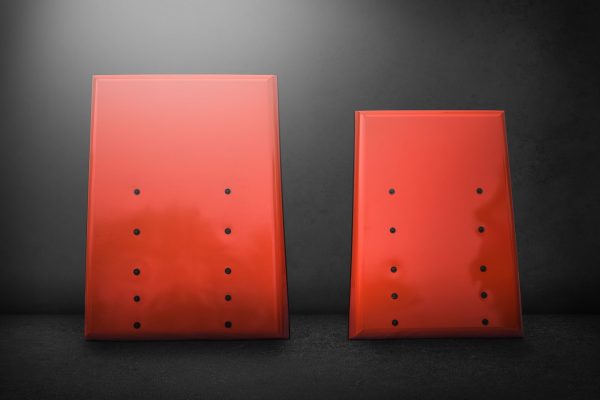

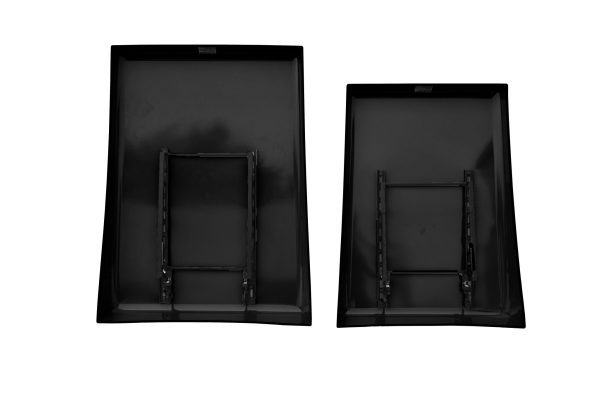

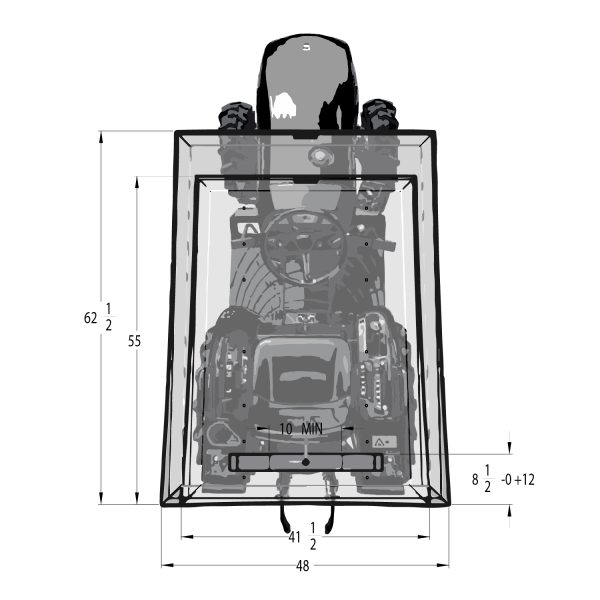

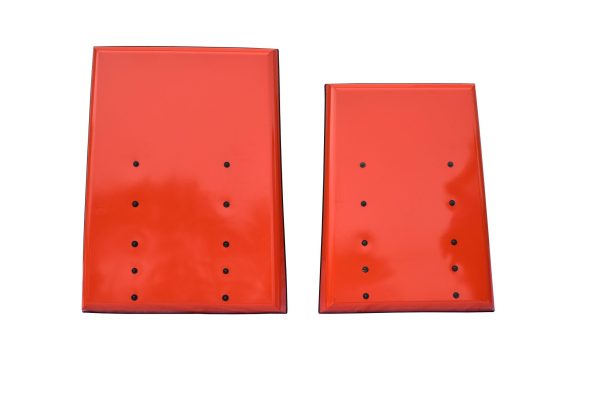

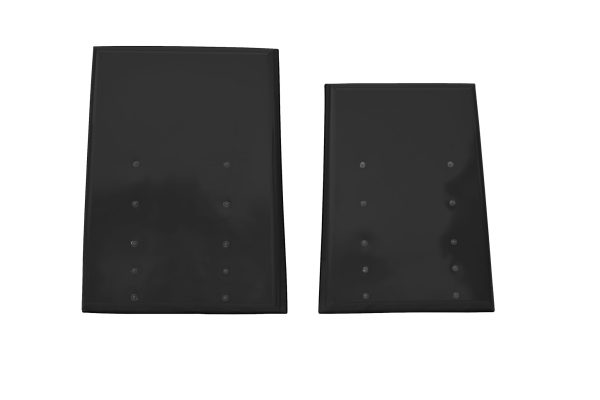

X-Large: 62” long and 48” inches wide at the back, tapering to 43 1/2” in the front
Large: 56” long and 42” inches wide at the back, tapering to 37” in the front
Versatile | Lightweight Aluminum | Reversible | Universal Fit
Canopy, mount, and all hardware included.
L & XL Universal ROPS-Mount Canopy is available in 7 Colors: Black, White, Gray, Red, Orange, Blue, & Green
Frequently Bought Together

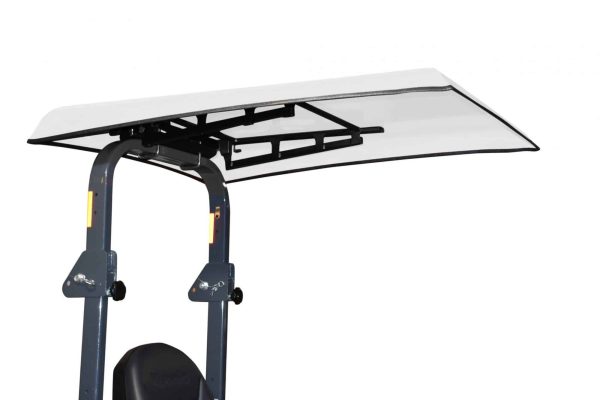

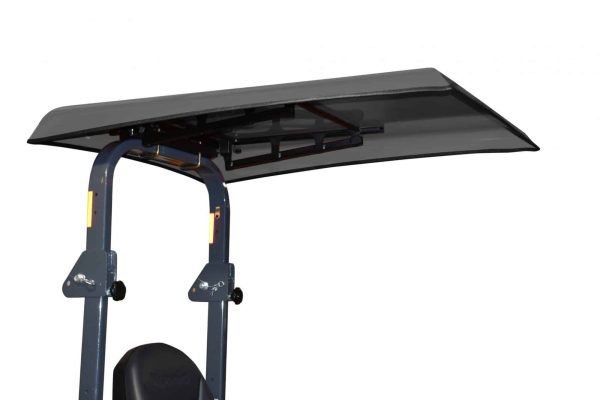

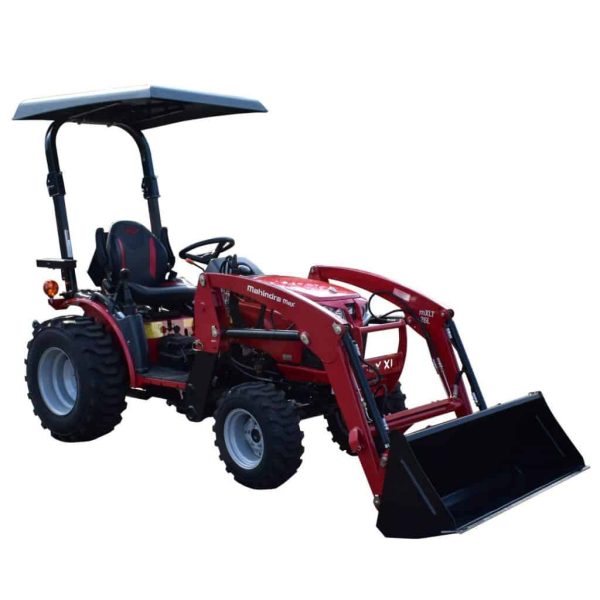

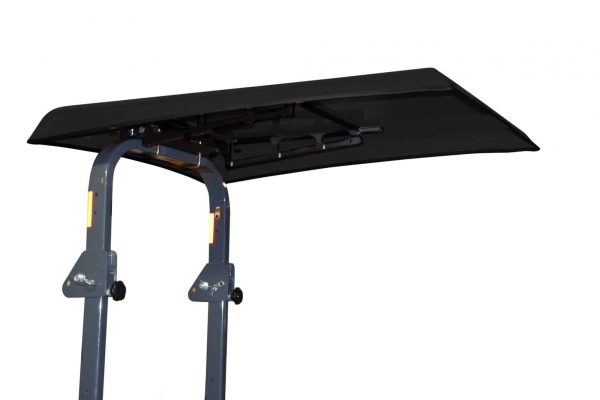

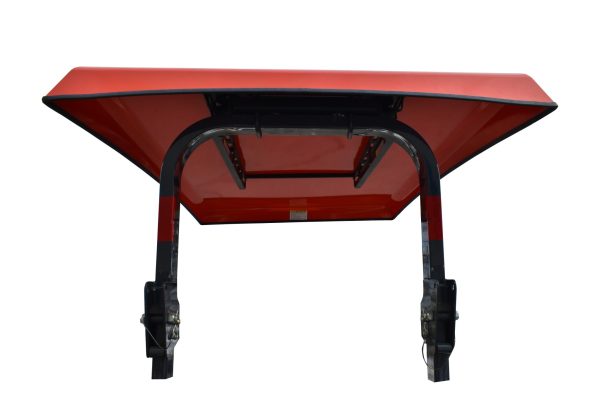

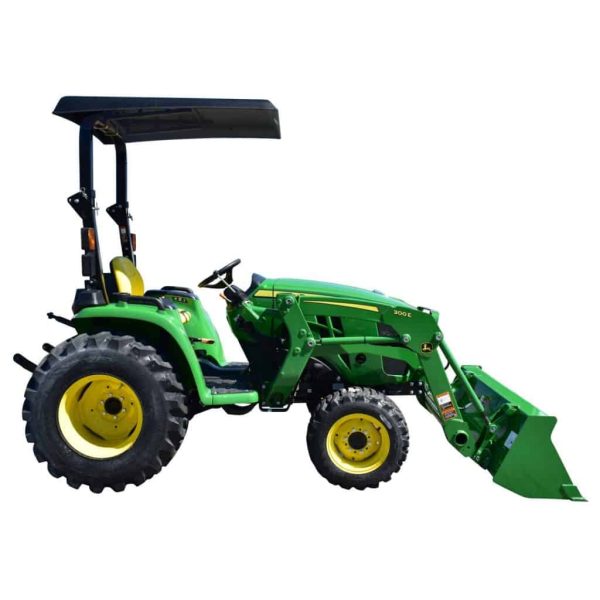

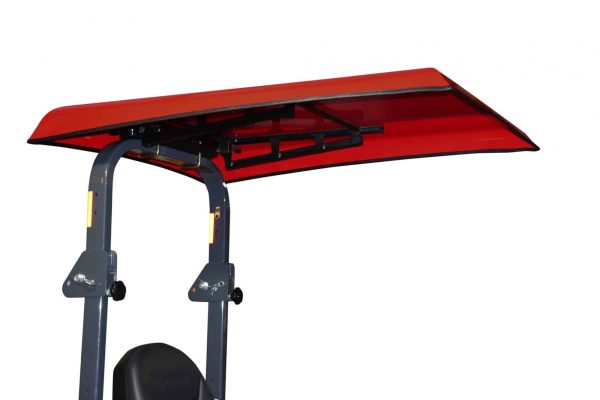

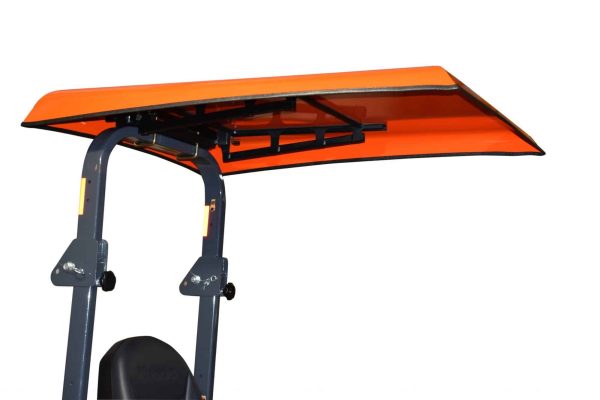

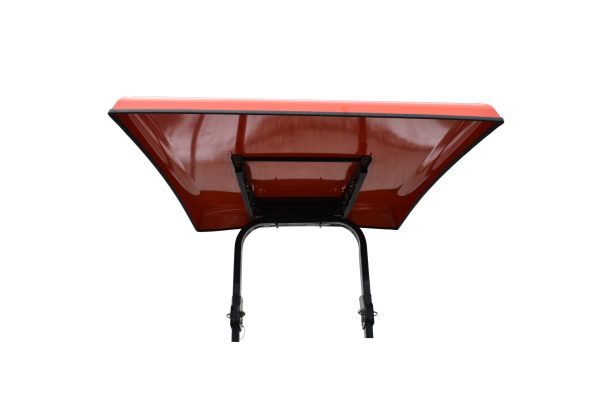

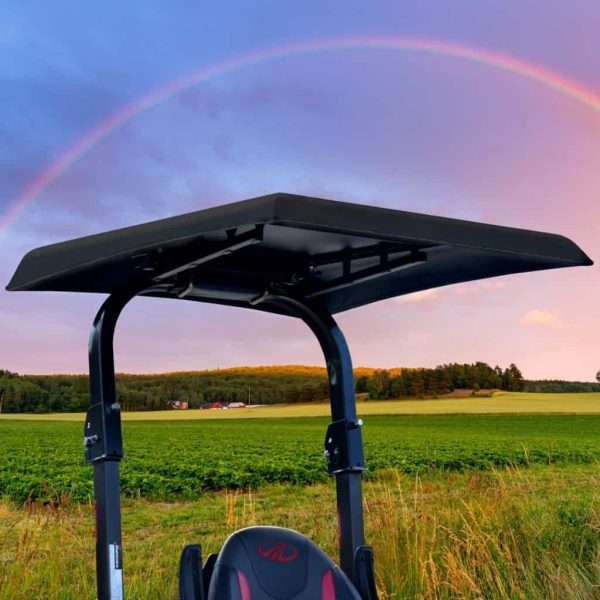

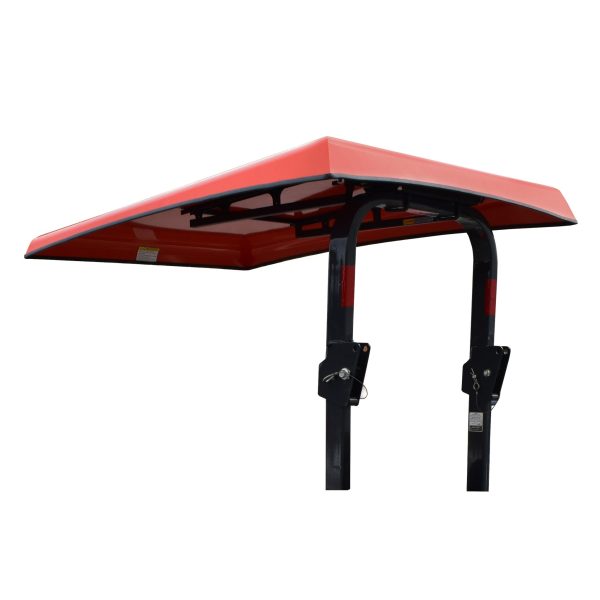

Mount/Pivot assembly mounts to vehicle ROPS in minutes. The lightweight Universal ROPS-Mount Canopy features integrated handles with a quick-release latch for easy removal.
- Lightweight aluminum cover – L weighs less than 30 lbs., XL weighs less than 34 lbs.
- Toolless removal in seconds
- Integrated handles – quick-release latches
- Reversible — rear-facing for backhoe operation
- Adjustable positioning – fits angled or straight ROPS
- Canopy top adjusts 6” forward or aft
- Easily installs in 30 minutes
- Trailerable up to 35 mph
Made in the U.S.
- Fits square or rectangular ROPS
- 10 inches of flat surface on top of ROPS
- 2- to 3-inch ROPS width
- 1.5-inch to 2.75-inch ROPS thickness
- ROPS can be angled +/-36 degrees
- Adjustable 6 inches forward and back

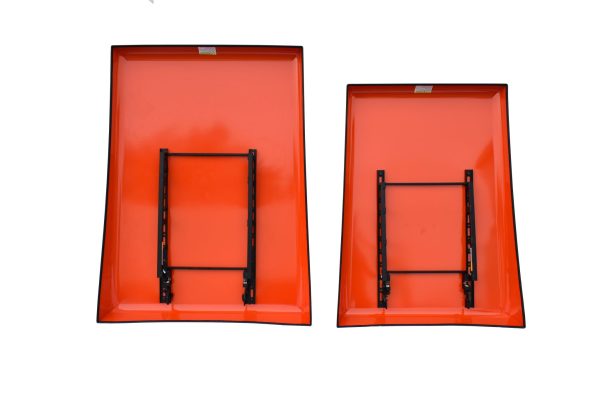

- Large Dimensions: 56″ long and 42″ wide at the back, tapering to 37-inches in the front
- X-Large Dimensions: 62” long and 48” wide at the back, tapering to 43 1/2” in the front
- Installation Guide
- Installation Video
WARNING: This product can expose you to chemicals including [name of one or more chemicals], which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

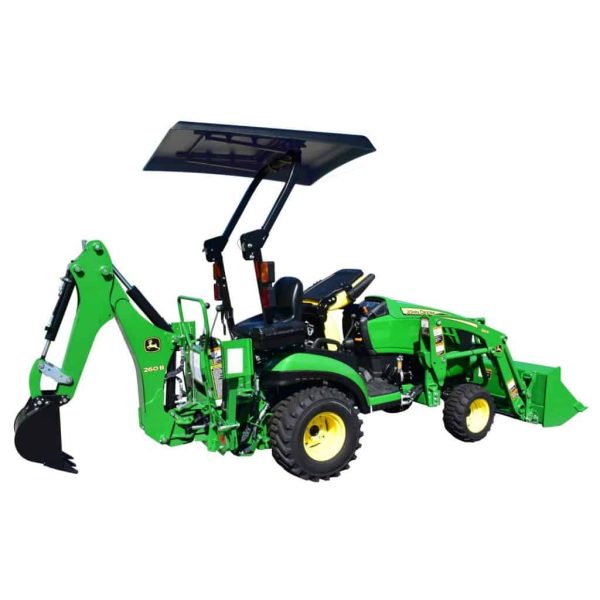

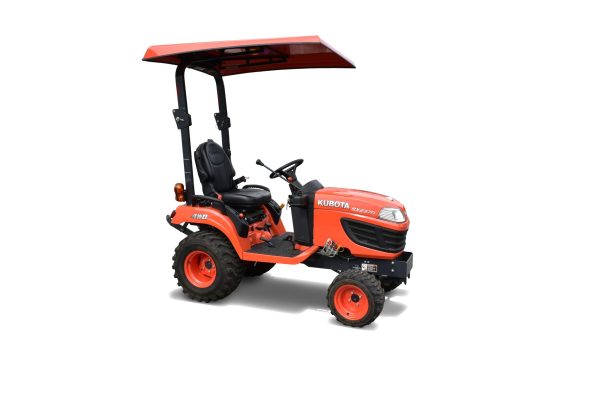

Turn the Universal ROPS-Mount Canopy to the rear-facing position for shade while operating the backhoe. Remove the canopy in seconds for easy trailering or to maneuver around low obstacles.
Canopy adds 4 inches perpendicular to the flat top surface of the ROPS
Unclipping and removing the top, the brackets extend approximately 3 1/4″
Fits Maximum ROPS Size 3” Wide X 2 ¾” Thick
Requires 10 inches of flat surface on top of ROPS
