John Deere 220R Diverter Kit: Click for Fitment
- Tractor Models: 2320, 2520, 2720, 2032R, 2032M, 2036R and 2038R
- Loaders: 220R MSL; 220R SPHC
Add a third hydraulic circuit to your loader to operate grapples, plow adapters or other hydraulic loader attachments.
The third function operates from a button on the loader joystick that diverts hydraulic flow to a manifold at the front of the loader. Release the button and normal dump and curl functions return.
Hydraulic kits come standard with pigtail electrical wires (connect to 12v power yourself). An optional auxiliary wire harness power extension (“Cigarette Lighter” power plug) is available.
HDK-220R Single Point Hydraulic Connector Adapter Kit available for the Artillian HDK-220R-PTL hydraulic diverter kit to be installed on a John Deere 220R loader with the John Deere Single Point Hydraulic Connector.
Add a $25 discount when you combine our John Deere Diverter Kits with any of our Artillian frames, grapples or plow!
Use Coupon Code: DIVE25
Diverter Valve – 12VDC / 4 amp solenoid actuated hydraulic diverter valve
Hydraulic Hoses – Flexible hydraulic hose assemblies include genuine Deere dust plugs and Deere compatible quick disconnect fittings
Hose Protectors – Hoses ship fully assembled in protective sheaths, ready to install
Push-Button Switch – A weather sealed momentary push-button switch mounts to your tractor joystick, easily adjustable to your preferred position
Wiring Harnesses – Exterior-grade long-life wiring harnesses with fuses and environmentally sealed automotive style connectors
Pigtail Electrical Leads Come Standard (PTL version) – you provide the electrical connection
Aux Power Plug – Optional auxiliary wire harness kit available
Mounting Systems – Fully assembled, secure and simple to install mounting systems for the diverter valve body, the push button switch and the loader front quick disconnect manifold
Rubberized Interface – All contact points are rubber coated to protect your tractor’s finish
UV Resistant Cable Ties – To last the life of your tractor
Approx. Installation Time – 1-2 hours
There are approximately 110 individual components in our quality diverter kits.
These components are assembled into 5 major assemblies, ready for you to install, with step-by-step instructions. It’s easy. No hydraulics knowledge is required.
The actuator switch attaches to your loader joystick. It can be positioned however is most comfortable for you.
Connect your attachments to the ¼ inch female quick disconnects on the front manifold. John Deere color matched dust plugs are included.

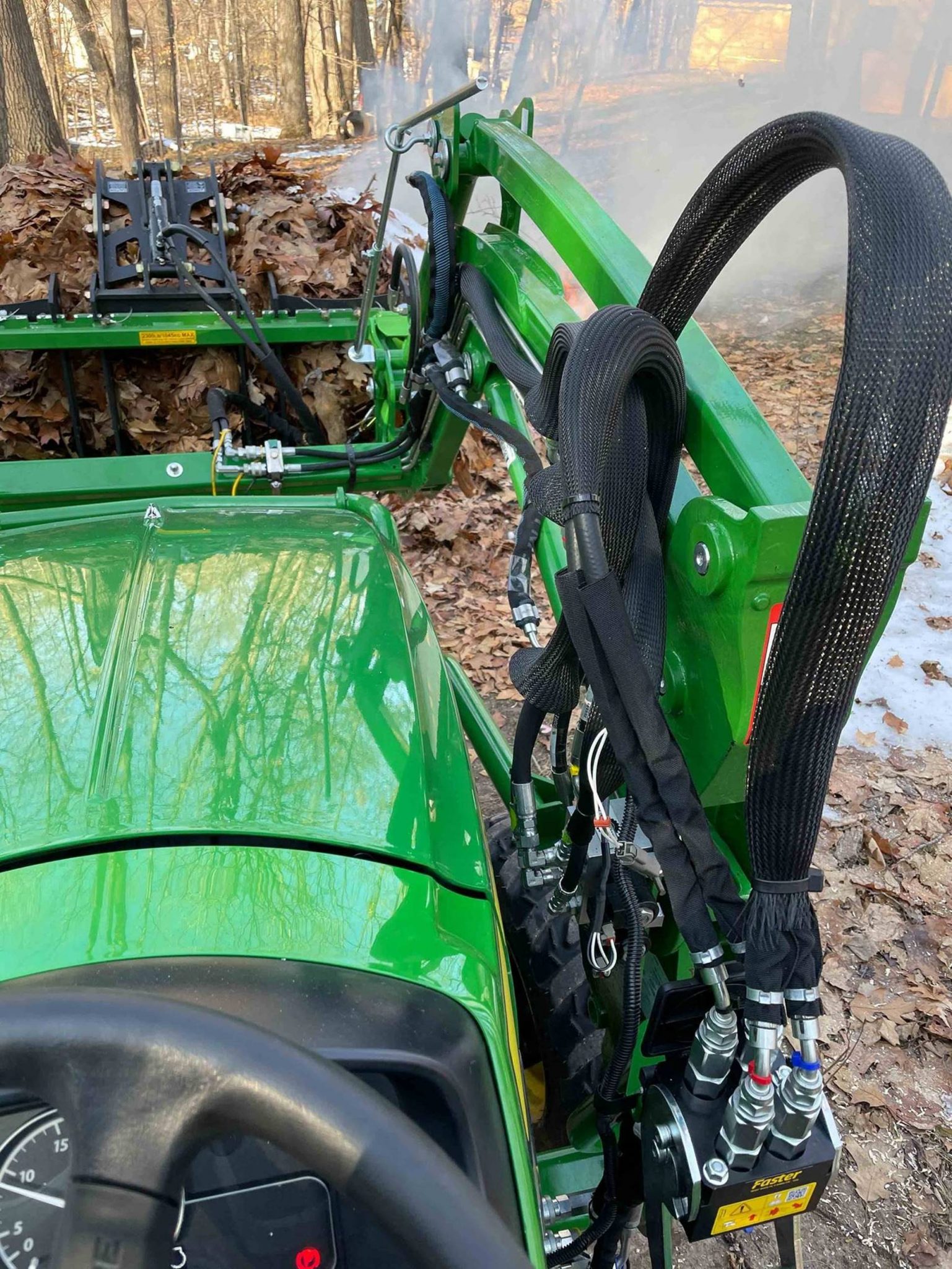

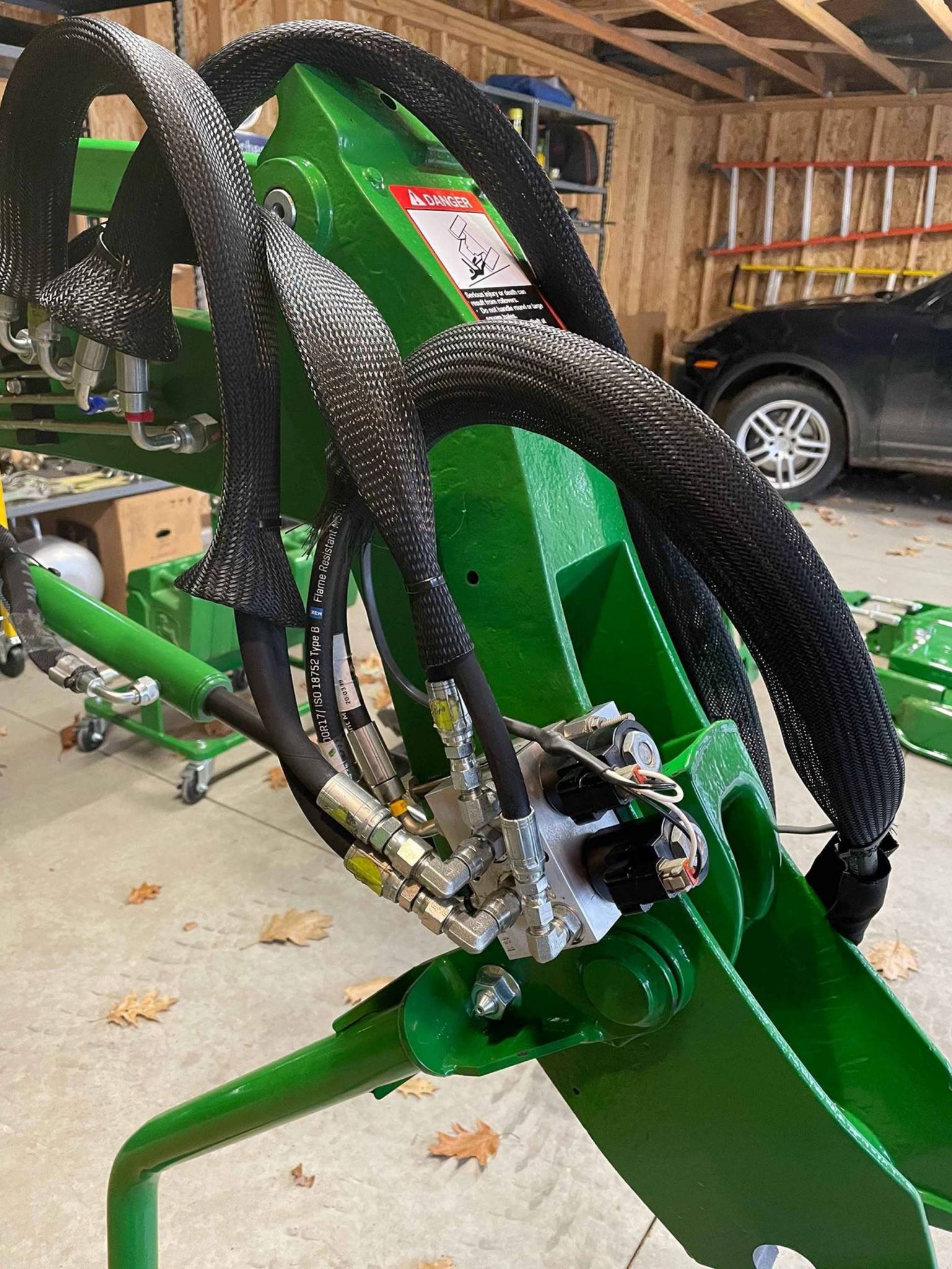

The diverter valve attaches securely to your loader using one of our proprietary mounting kits which allow for a fast installation with no damage to the loader finish.
