Fully Hydraulic Utility Vehicle Plow
Plow by CURTIS

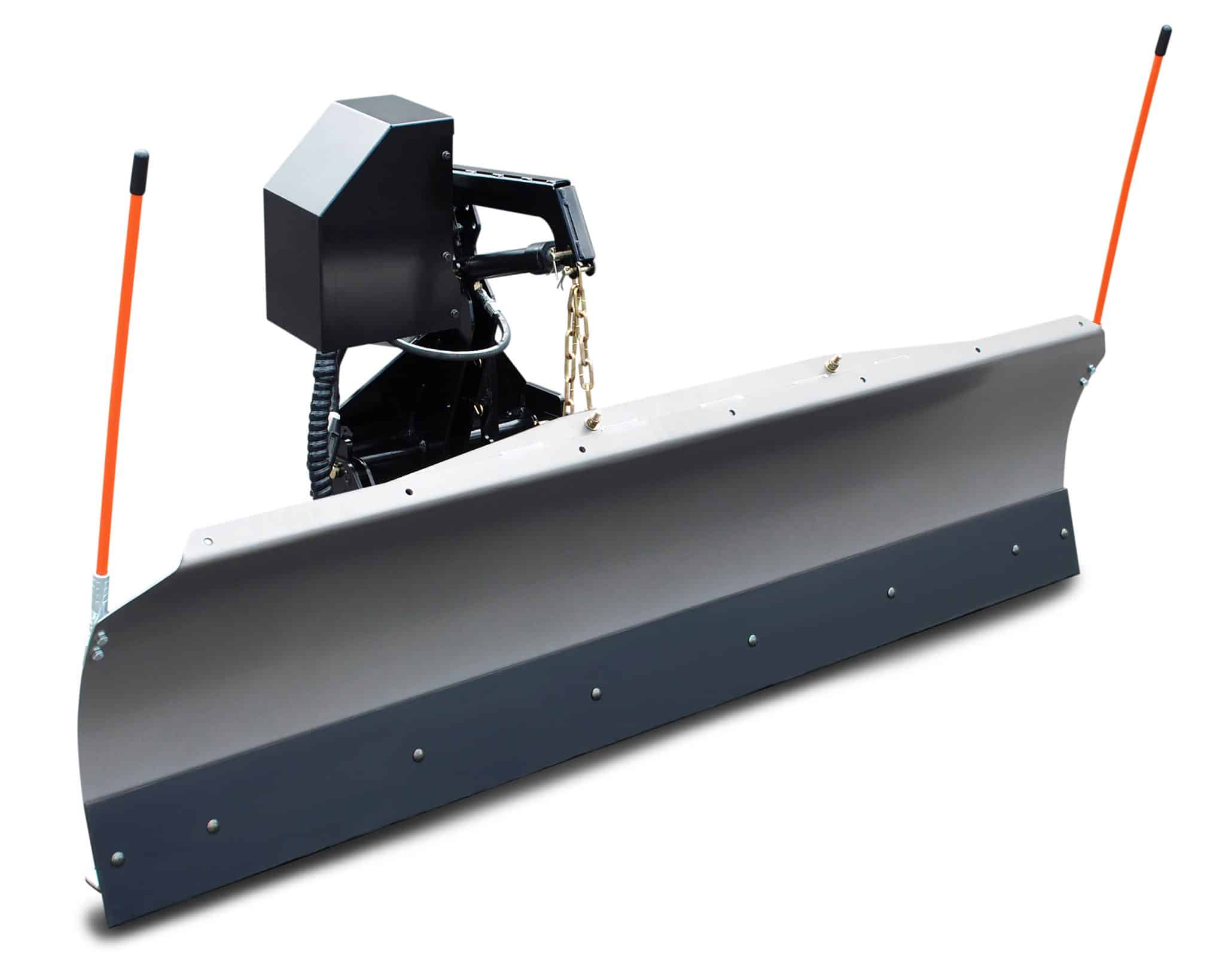

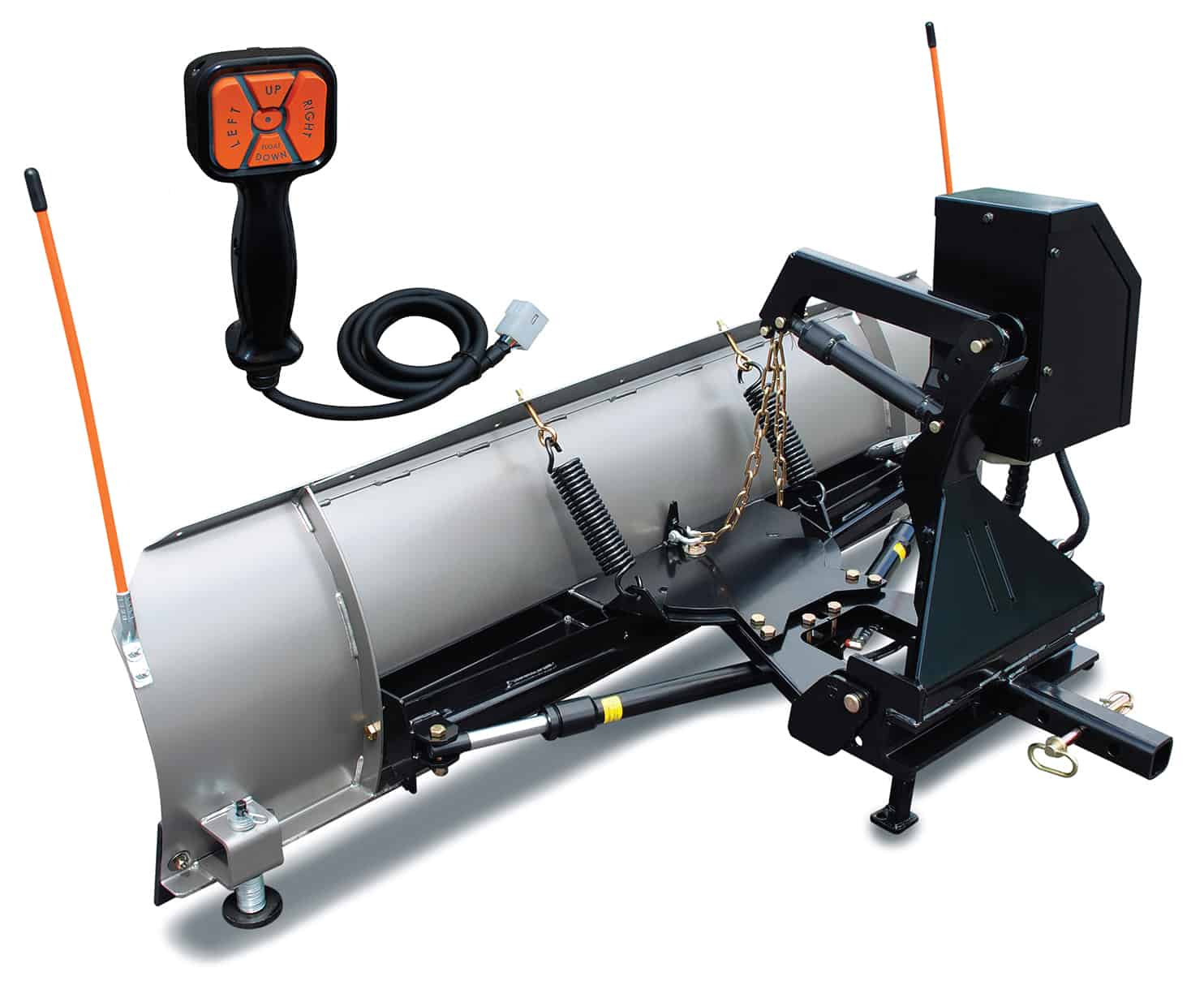

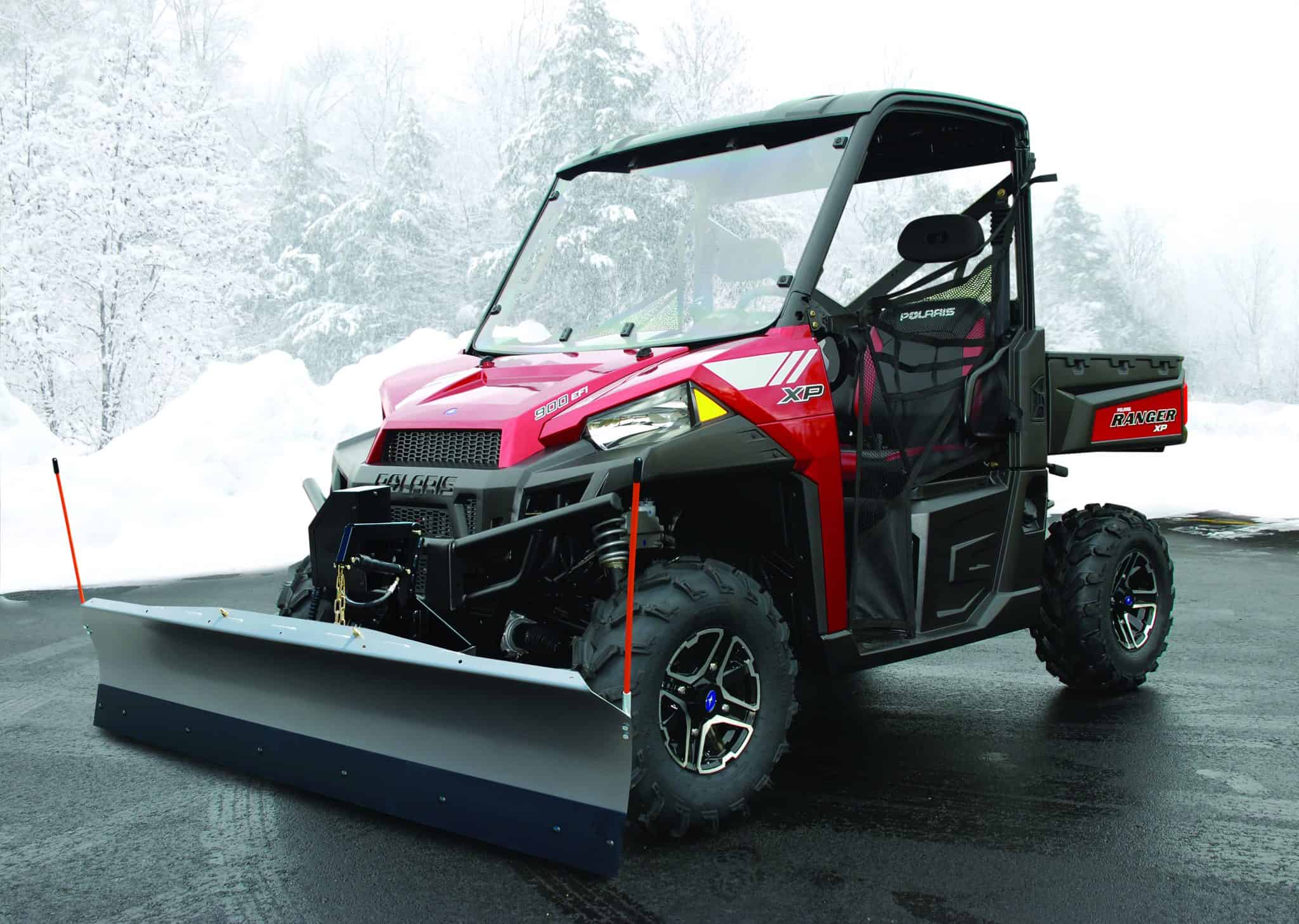

Plow makes quick work clearing sidewalks, small parking lots and driveways. Illuminated, hand-held in-cab controller for easy operation in low light conditions. Plow comes unassembled. (Shown with optional blade markers.)
Mount Kits Required – Sold Separately
NOTE: In order to avoid damage to your vehicle, you must use a Curtis Mount for your specific make and model.
Custom Mount Kits Available for:

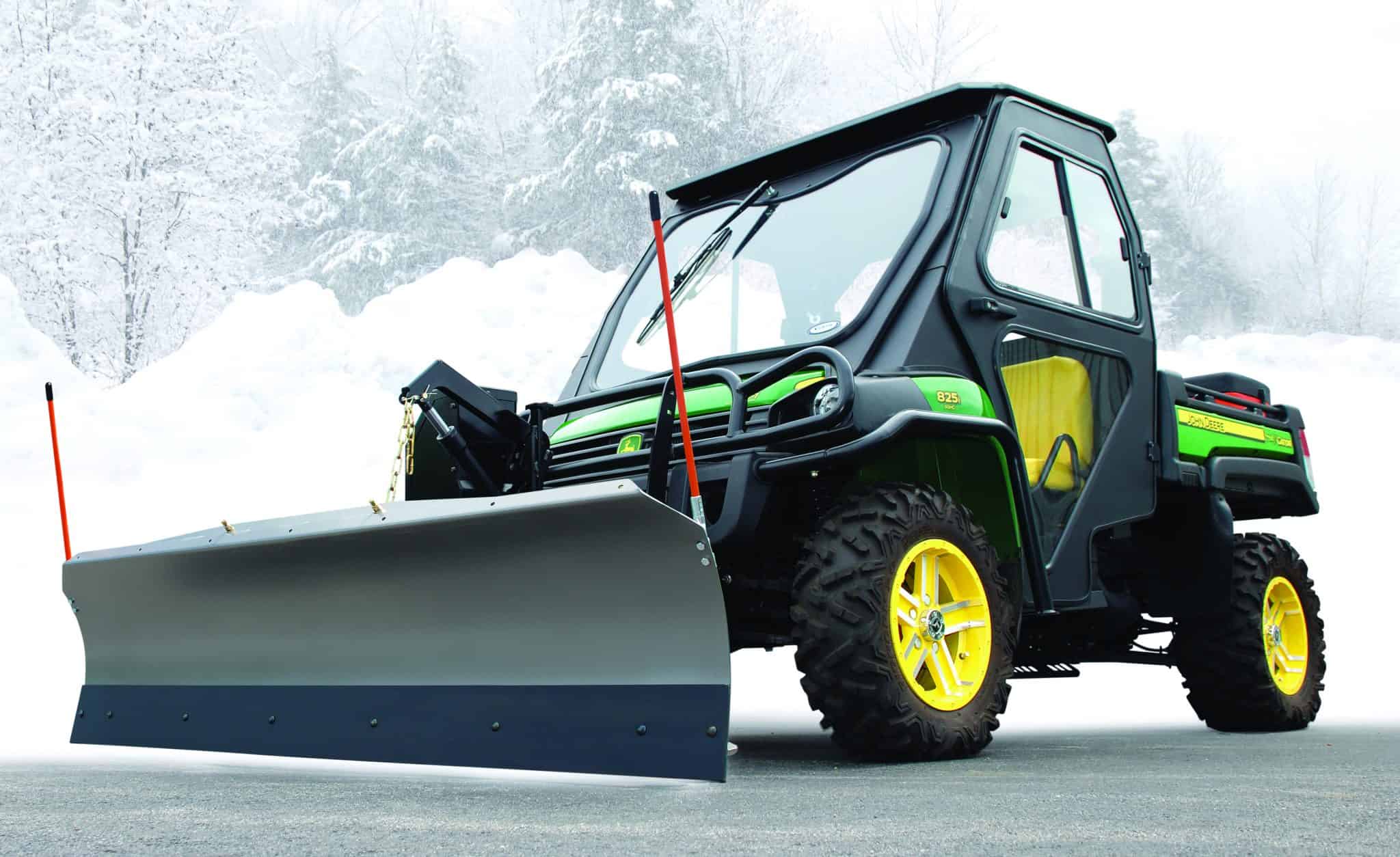

John Deere Gator XUV 615, 625, 815, 825 & 855: 2011 and newer (1JDUTPMK)
John Deere Gator XUV 835 & 865 (1JD835PMK)
Polaris Ranger 900 & XP900: 2013 to current (1PUTPMK)

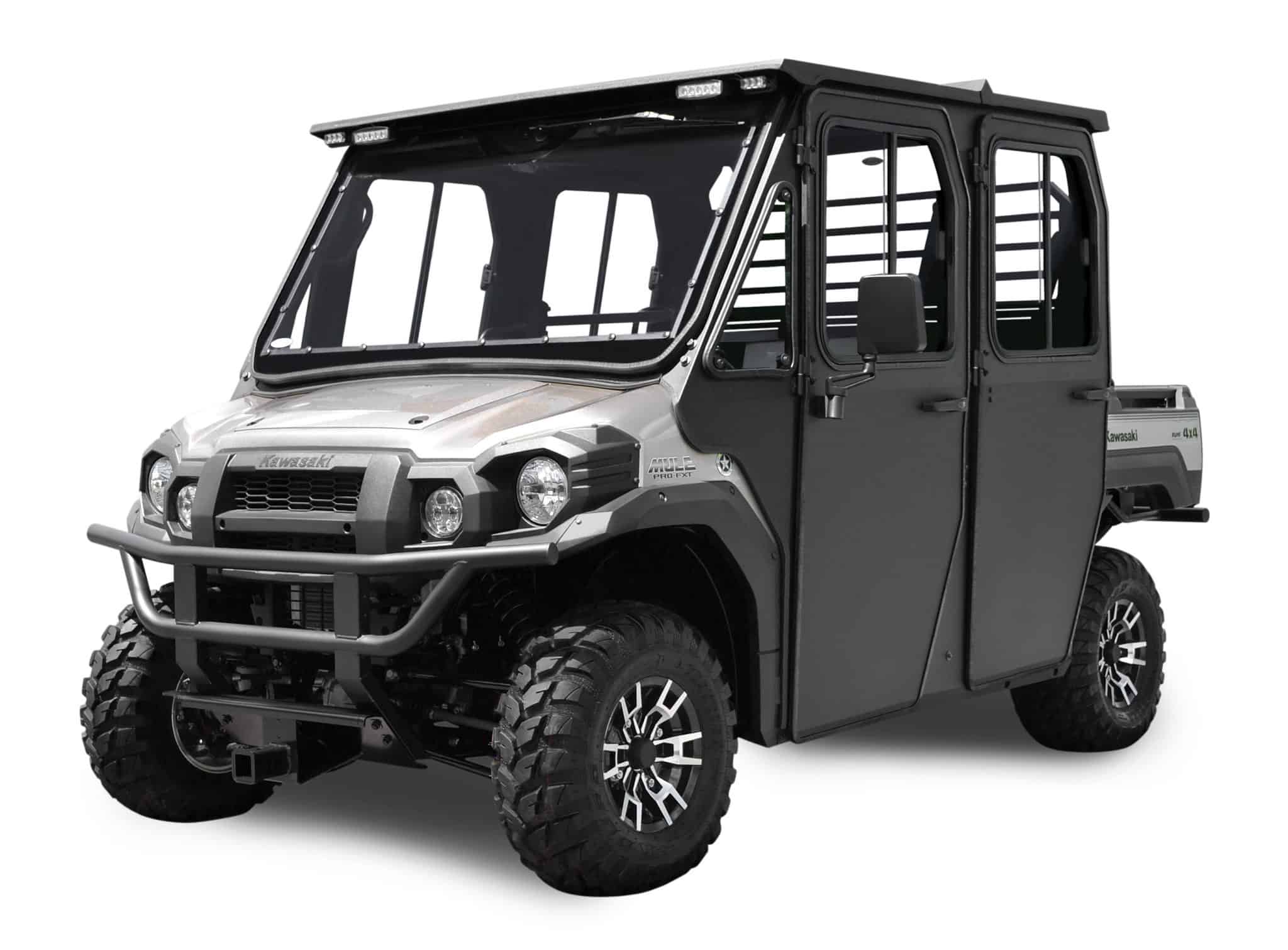

Kawasaki Mule Pro FX/DX, Pro FXT/DXT (1KAPFXPMK)

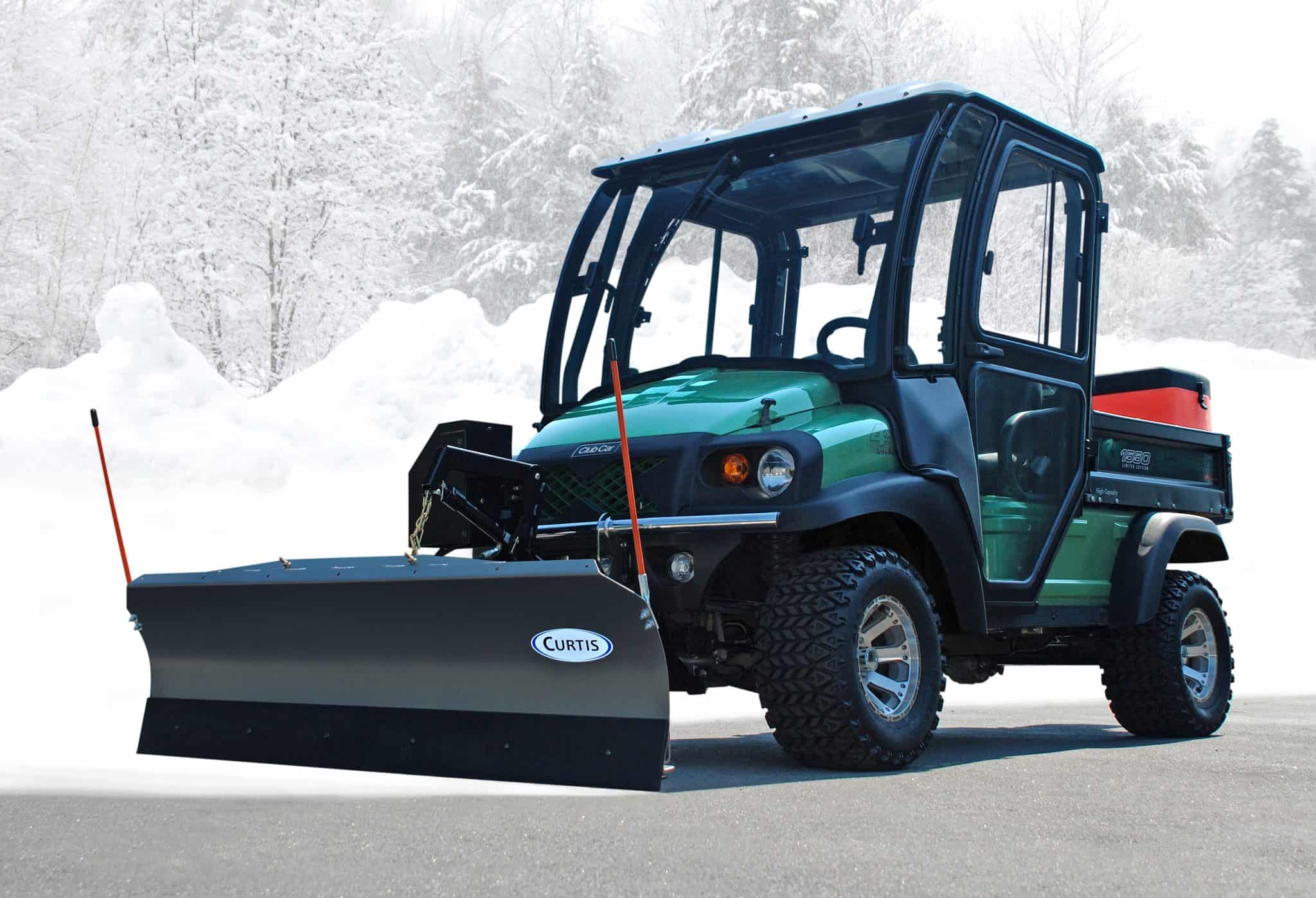

Club Car XRT 1551 (2004 – Current year) (1CCUTPMK)
MSRP:$4,084.29
INTERNET PRICE:$4,084.29

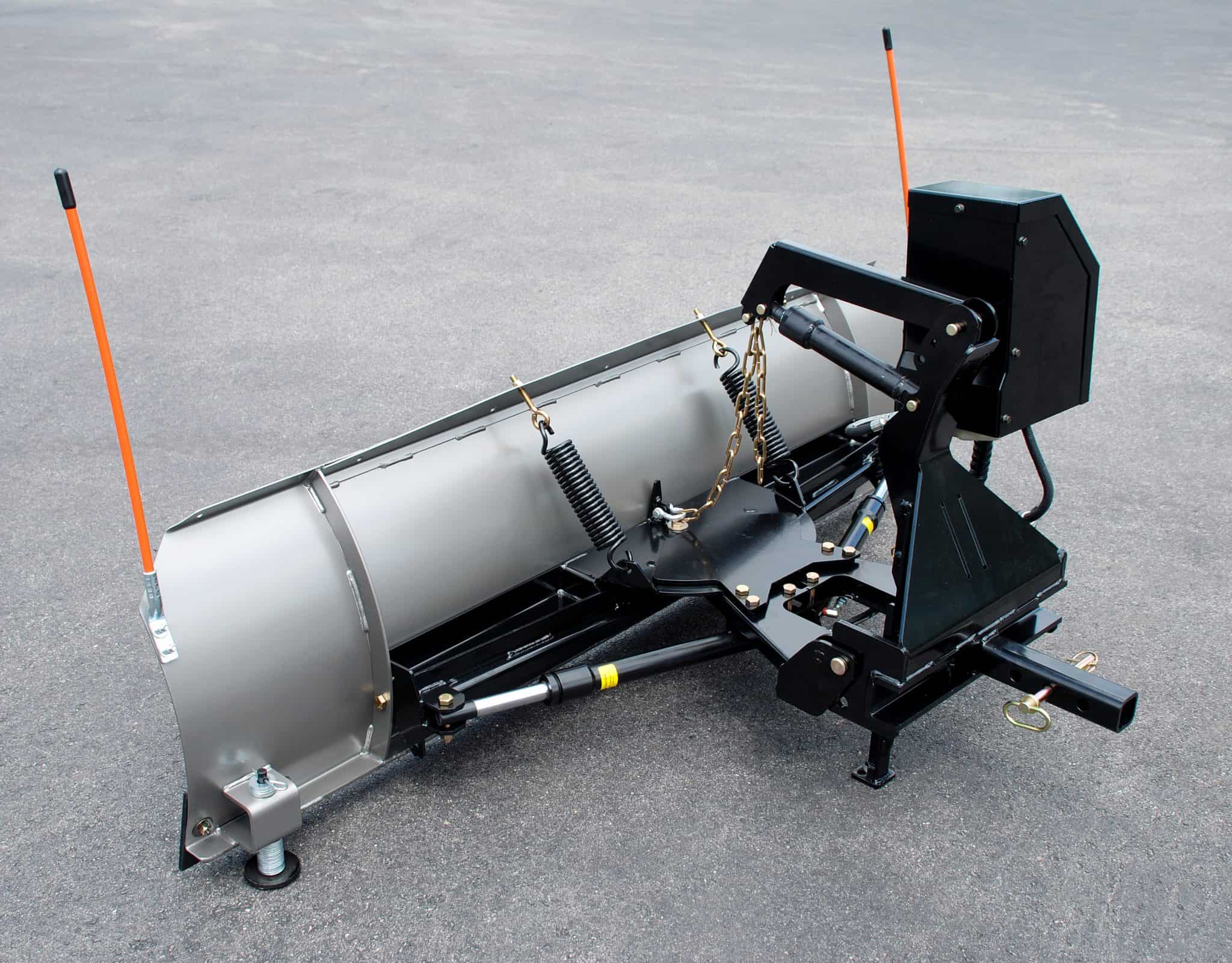

- Full hydraulic lift and angle control
- Single plug electrical connection

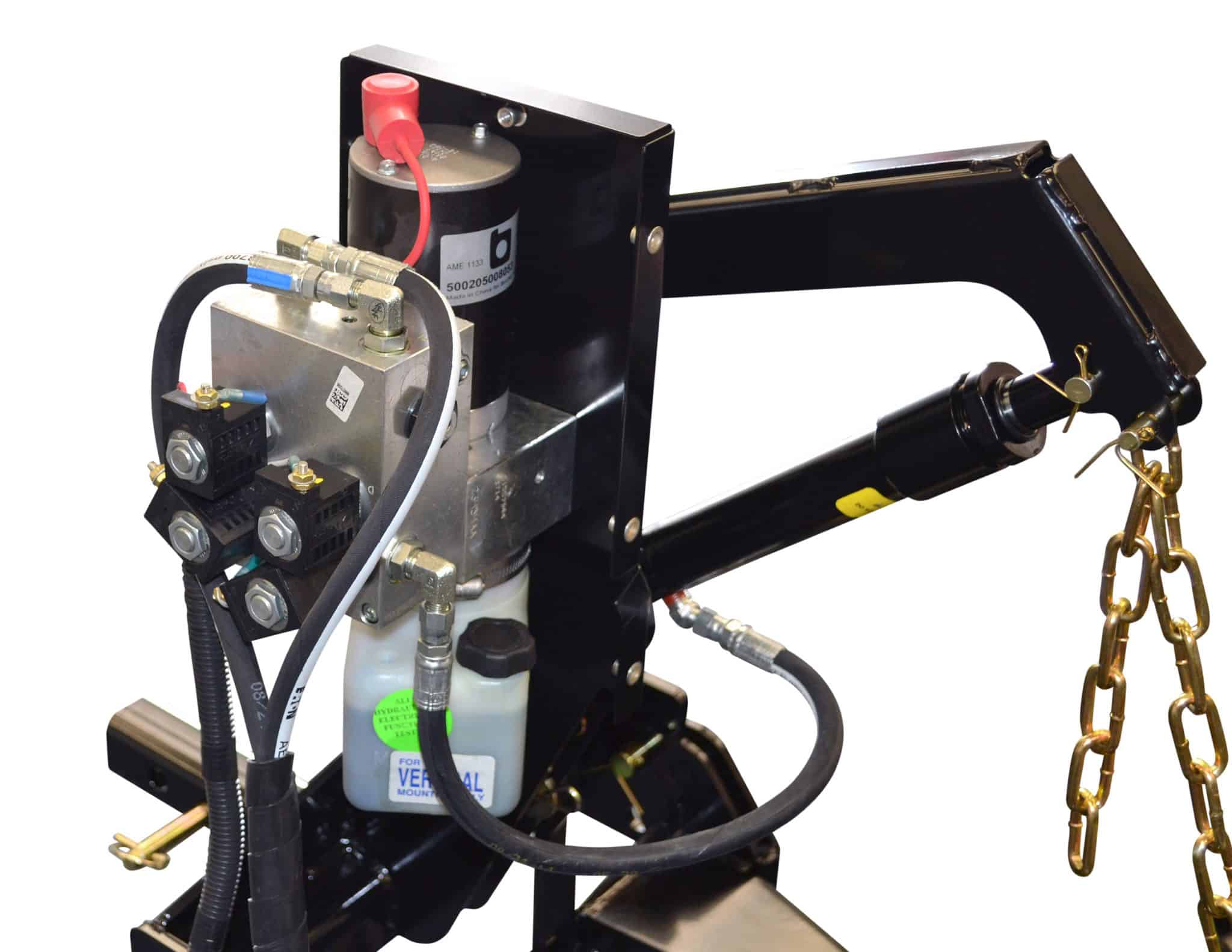

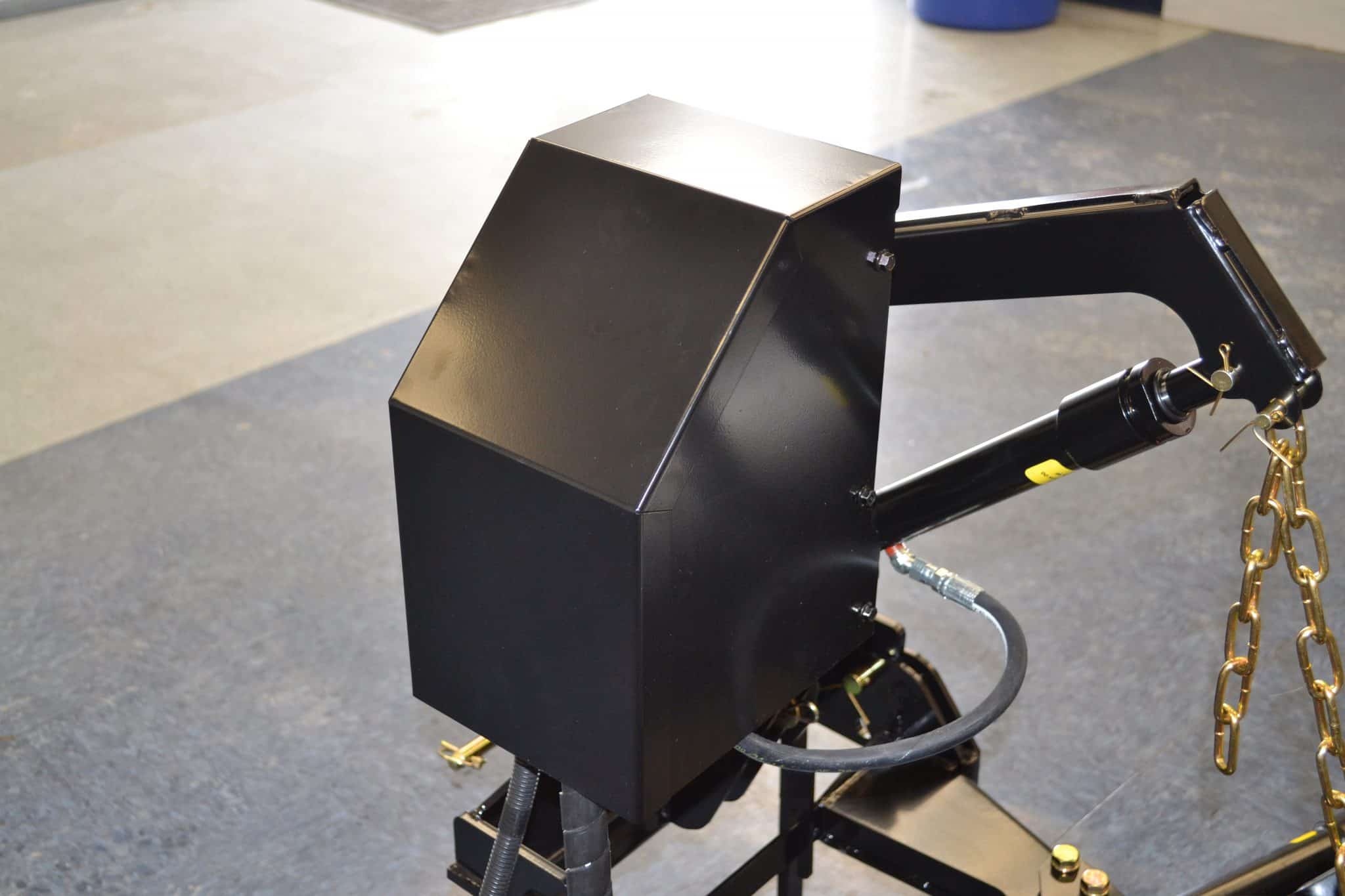

- Fully enclosed, sealed hydraulic system located on top for easy access and servicing
- Custom 2 inch receiver mount
- Quick hook up and detach
- 72 inch wide moldboard with 48 inch push frame
- Full trip, durable 12 gauge steel moldboard
- Adjustable trip springs
- Replaceable and reversible cutting edge
- Adjustable skid shoes included
- Mount kit required (sold separately)
- Moldboard: Width, 72 inches; Height, 18 inches
- Full trip moldboard
- Commercial grade steel construction
- Steel A-Frame
- 48 inch trip frame
- Maximum blade angle: 0 degrees thru 28 degrees
- Skid shoes: 1/2 inch diameter stem
- Weight: 254 lbs.
- Cutting edge height; 6 inch, double sided
- Custom 2 inch receiver hitch
- Installation Manual
