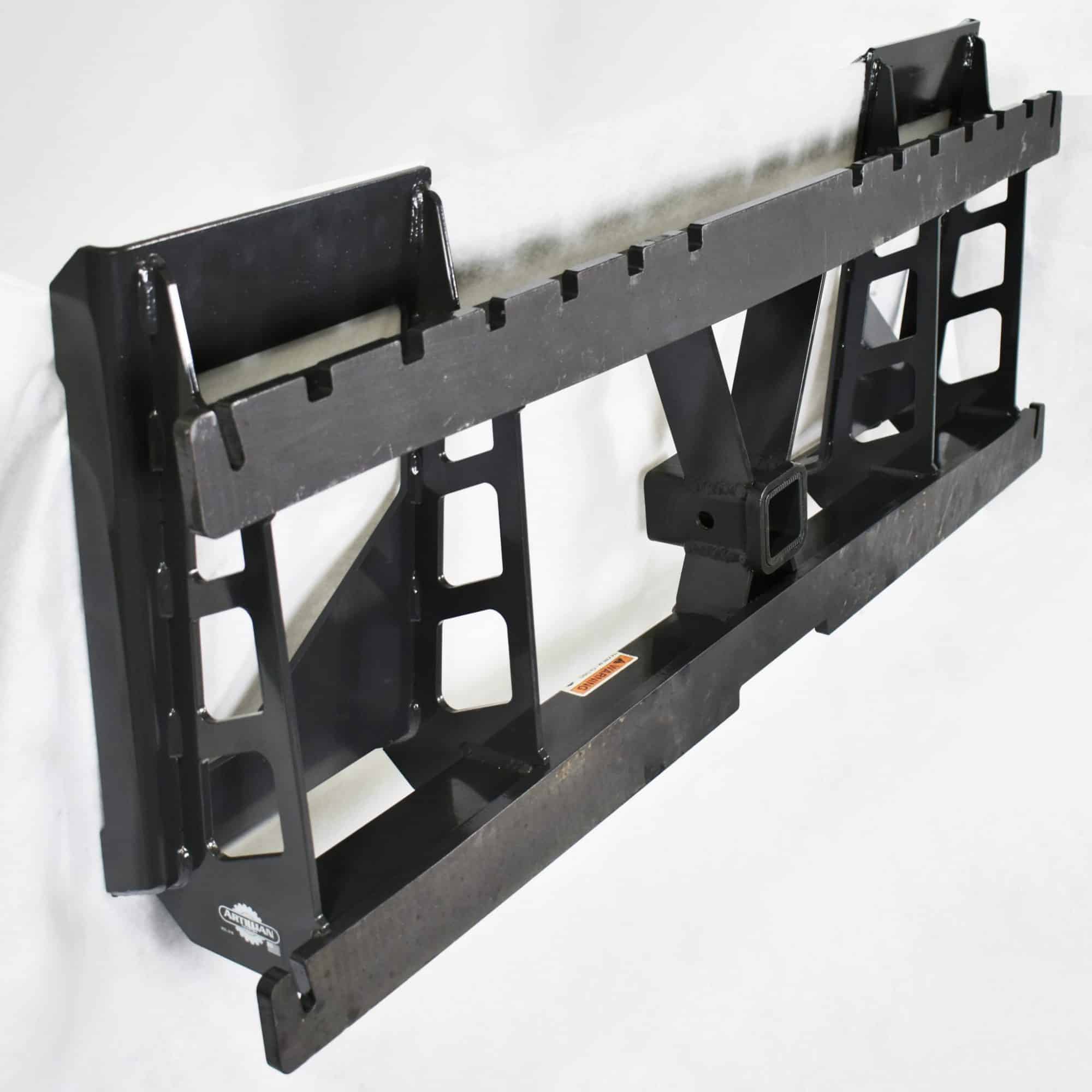

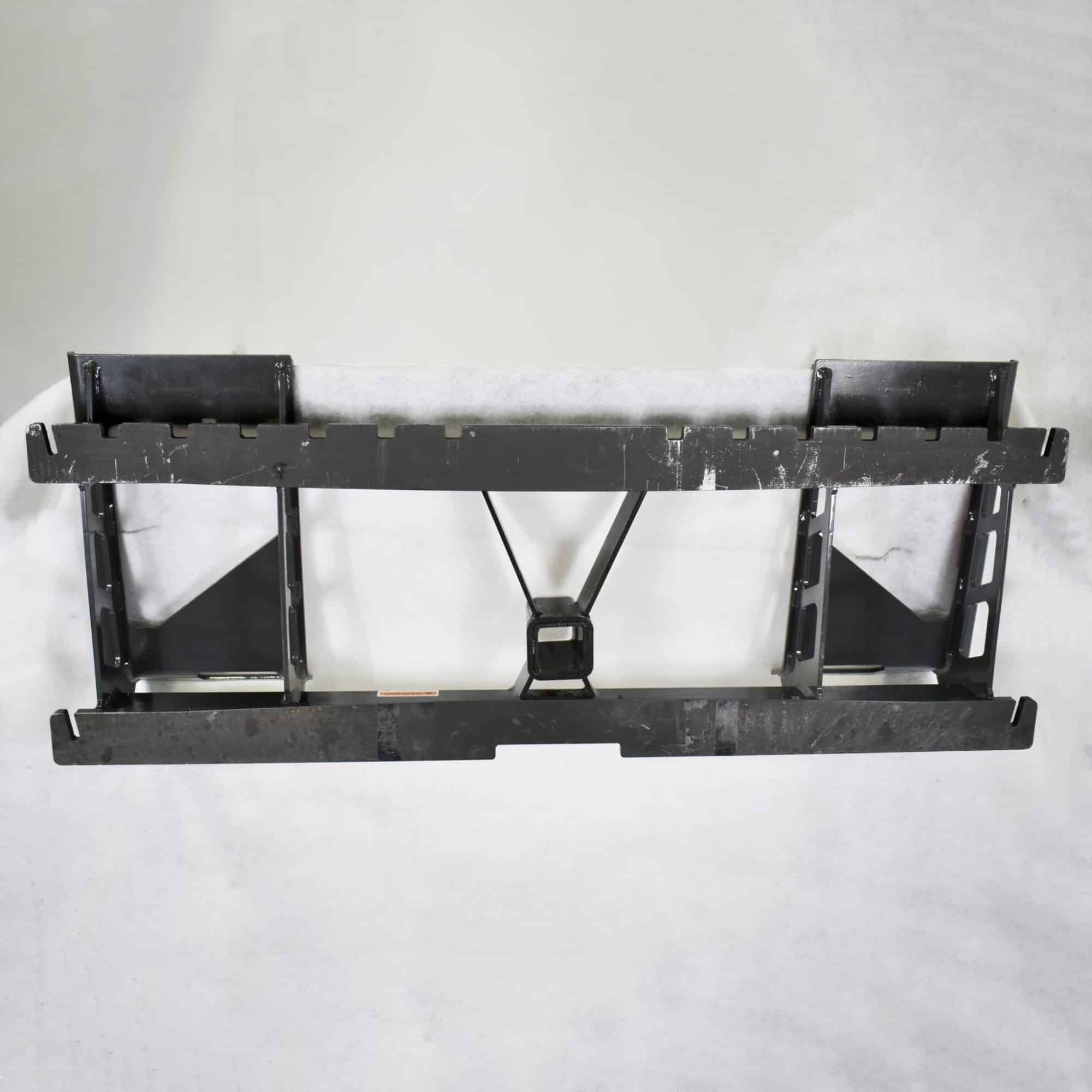

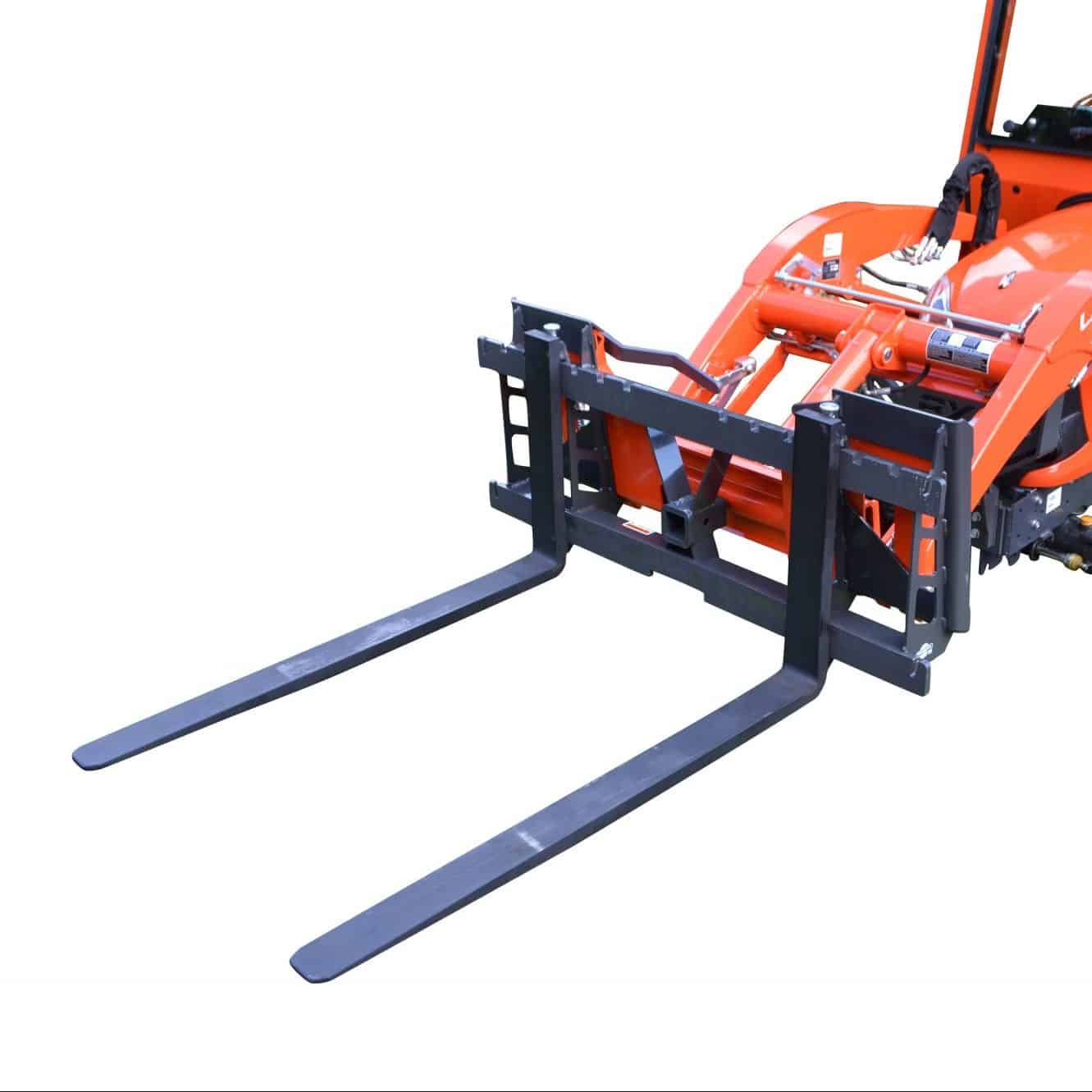

Fork Frame SET with 3000 Lb. Skid Steer Quick Attach Pallet Fork Frame
These pallet fork frames fit any Universal Quick Attach or Skid Steer Quick Attach loader meeting SAE J2513 standard.
- Includes built-in 2 inch receiver
- ITA Class 2A Hook-Type Fork Tines
*Some Quick Attach Mounts may limit rear passage of ball mount.
Adjustable Fork Spacing – Forks can be spaced from 10 inches (250 mm) to 40 inches (1020 mm) apart and locked in place
Ground Rail Bevels – Match the fork tines for smooth fork sliding, just like forklift carriages
MIG Welded Construction – Engineered for strength and professionally hand crafted
Quality Materials – Built entirely in USA with high-strength North American steel
Durable Protection – Baked on powder coat is augmented by our proprietary graphite coating on the fork rails for easiest sliding of forks
Chain Slots – For 5/16 inch (8 mm) link chain at all four corners for easy lifting and securing of loads
Finish – Dark Dark gray powder coating to complement any tractor
Trussed Frame – Every pound of excess weight is removed without losing strength
Industry Standard Forks – ITA Class II hook type (fixed) fork tines

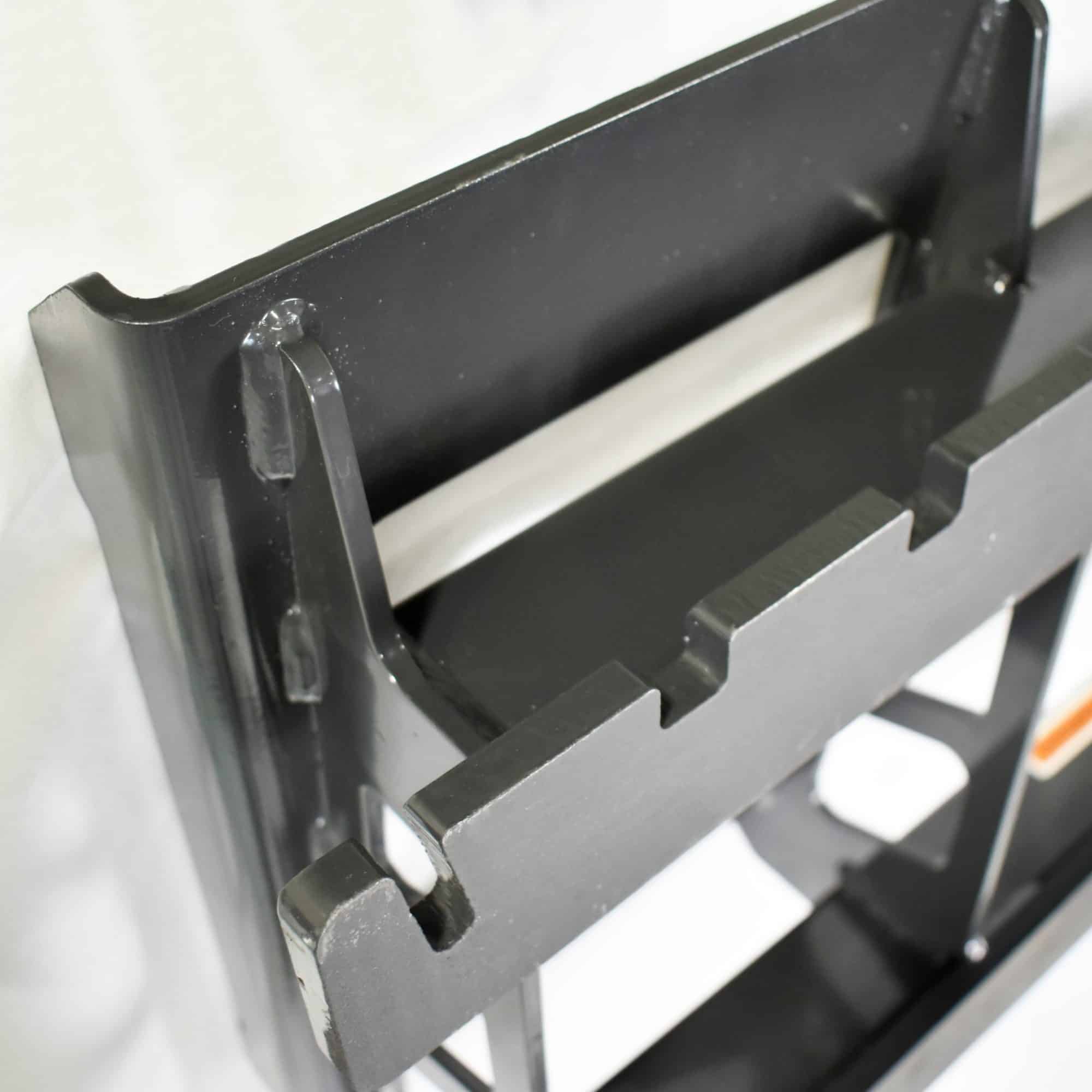

Super High-Strength Upper & Lower Fork Rails – No cheap formed steel. Our frames are built like a real forklift carriage. These rails are laser cut from extremely high-strength and wear-resistant North American steel
Fork frame is designed for a maximum load of 3000 lb. (1360 kg) at 18 inches (46 cm) load center. Maximum load may be limited by lower-capacity fork tines.
Frame
- Shipping Weight: 107 lbs.
- Shipping Dimensions: 51 X 21 X 9
- Frame Weight: 99 lbs. (45 kg)
- Built-in 2-inch hitch receiver
- Lift capacity: 3000 lbs.
- Side load capacity: 2000 lbs.
- Frame Rails: ½” thick ASTM A514/T-1 Alloy Steel
- Tubes: ASTM A513 Steel
- Mounting Trusses: ¼” HRPO 1010 Steel
- JDQA Hooks: ¼” ASTM A572 Grade 50 Steel
- JDQA Pins: Low Carbon Steel
- SSQA Plates: ¼” ASTM A572 Grade 50 Steel
Forks
- Shipping Weight: 66 lbs. per fork
- Shipping Dimensions: 44 X 23 X 3 per fork
- 2300 lb. capacity with pallet fork frame 23-JDHR
- 2300 lb. @ 24-inch load center (1045 kg @ 450 mm)
- Weight/pair: 120 lbs.
- Dimensions: 3.15 inches x 18 inches x 42 inches (80 mm x 30 mm x 1066 mm)
