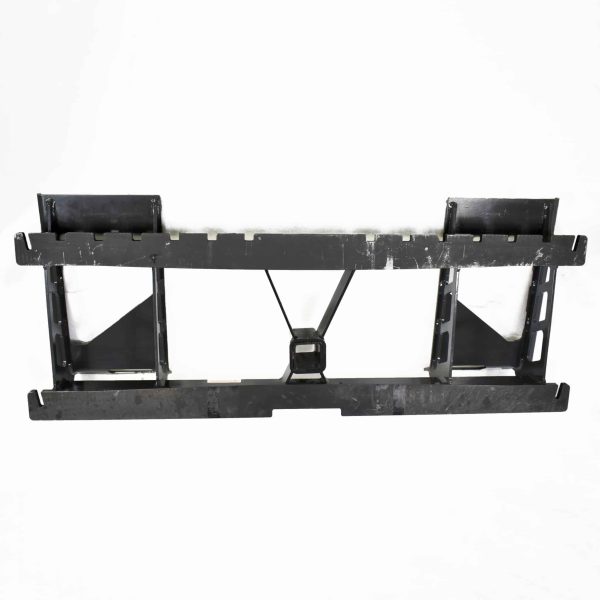

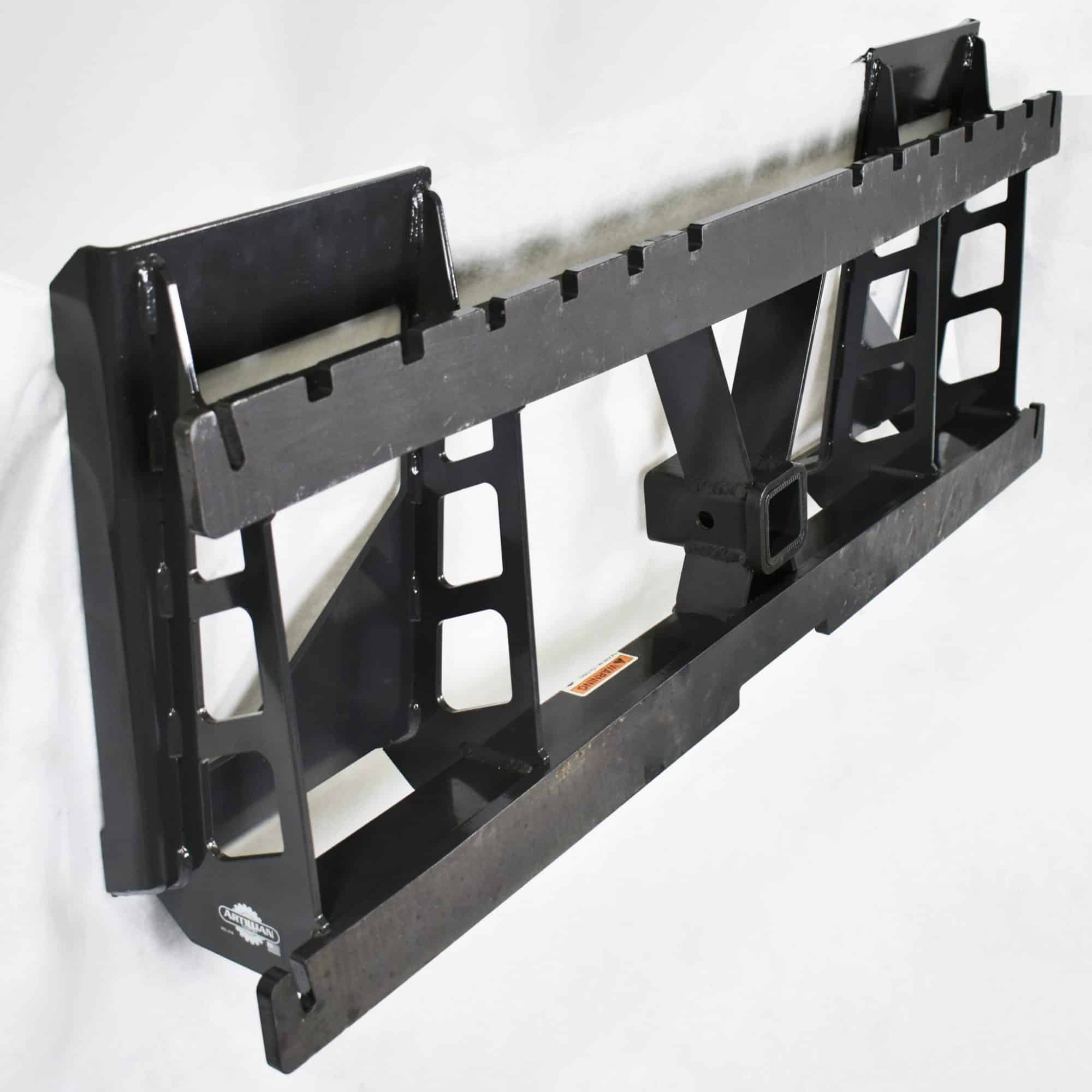

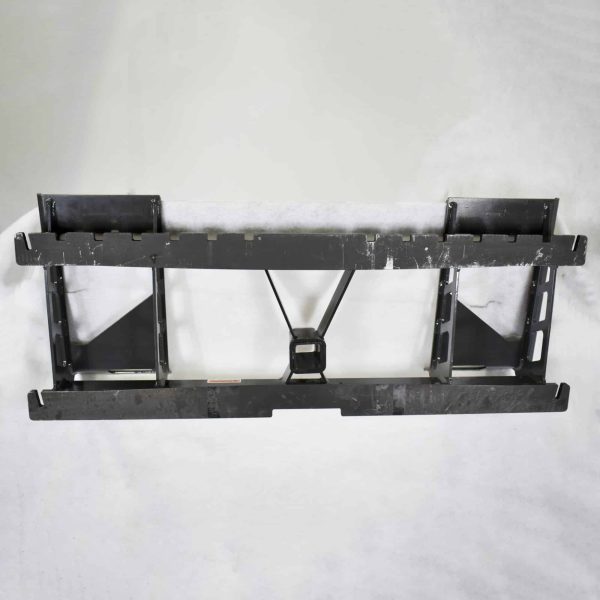

3000 Lb. Skid Steer Quick Attach Pallet Fork Frame

$798.50

These pallet fork frames fit any Universal Quick Attach or Skid Steer Quick Attach loader meeting SAE J2513 standard.

Includes built-in 2-inch receiver

*Some Quick Attach Mounts may limit rear passage of ball mount.

SKU: FF-30-SSHR Categories: Quick Attach Frames & Pallet Forks, Pallet Fork Frames, Skid Steer QA Frames

Adjustable Fork Spacing – Forks can be spaced from 10 inches (250 mm) to 40 inches (1020 mm) apart and locked in place

Ground Rail Bevels – Match the fork tines for smooth fork sliding, just like forklift carriages

MIG Welded Construction – Engineered for strength and professionally handcrafted

Quality Materials – Built entirely in USA with high-strength North American steel

Durable Protection – Baked on powder coat is augmented by our proprietary graphite coating on the fork rails for the easiest sliding of forks

Chain Slots – For 5/16 inch (8 mm) link chain at all four corners for easy lifting and securing of loads

Finish – Dark gray powder coating to complement any tractor

Trussed Frame – Every pound of excess weight is removed without losing strength

Industry Standard Forks – ITA Class II hook type (fixed) fork tines

Super High-Strength Upper & Lower Fork Rails – No cheap-formed steel. Our frames are built like a real forklift carriage. These rails are laser cut from extremely high-strength and wear-resistant North American steel

Shipping Weight: 107 lbs.
Shipping Dimensions: 51 X 21 X 9
Frame Weight: 99 lbs. (45 kg)
Fork frame is designed for a maximum load of 3000 lbs. (1360 kg) at 18 inches (46 cm) load center. A maximum load may be limited by lower-capacity fork tines.
Built-in 2-inch hitch receiver
Lift capacity: 3000 lbs.
Side load capacity: 2000 lbs.
Frame Rails: ½” thick ASTM A514/T-1 Alloy Steel
Tubes: ASTM A513 Steel
Mounting Trusses: ¼” HRPO 1010 Steel
JDQA Hooks: ¼” ASTM A572 Grade 50 Steel
JDQA Pins: Low Carbon Steel
SSQA Plates: ¼” ASTM A572 Grade 50 Steel
Installation Manual
