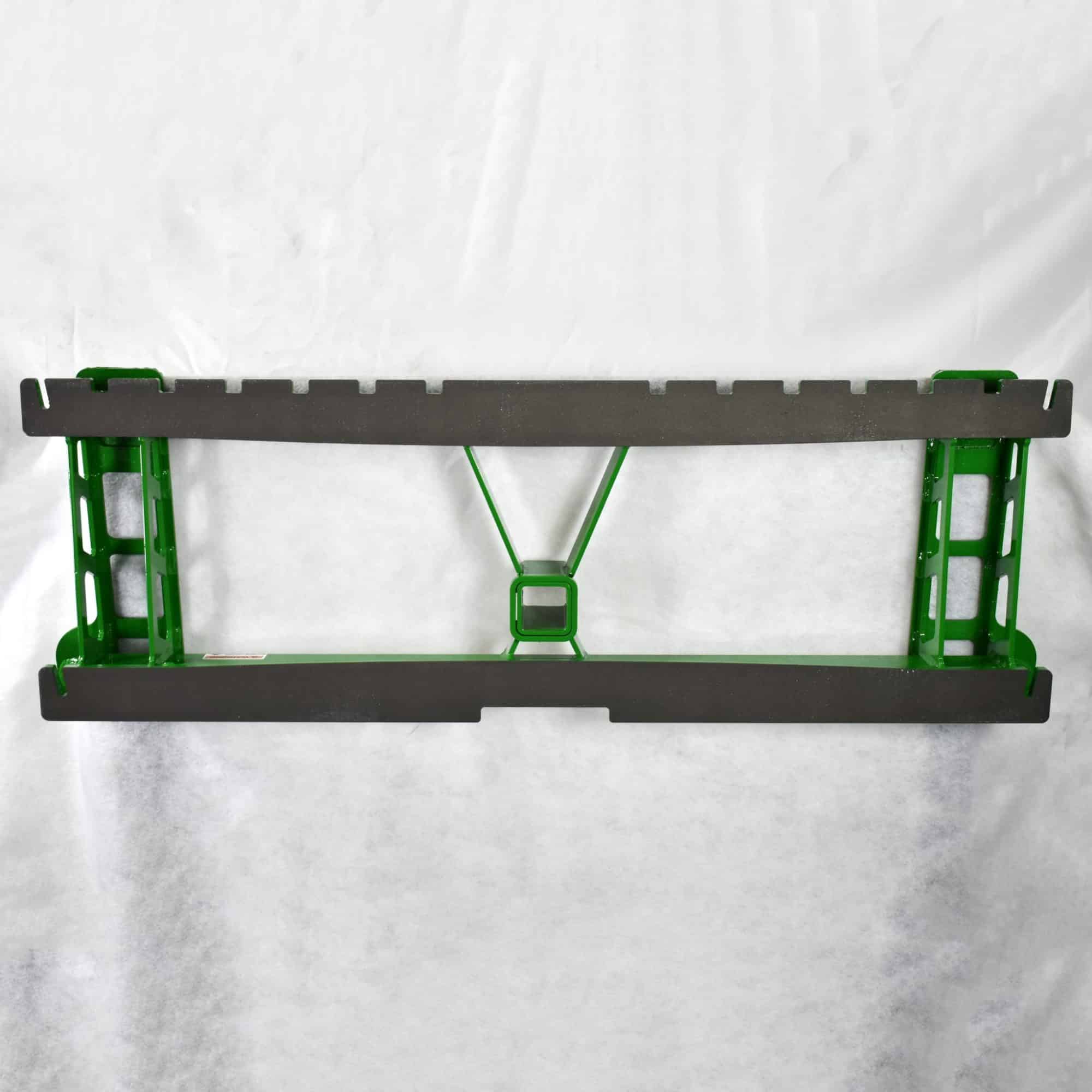

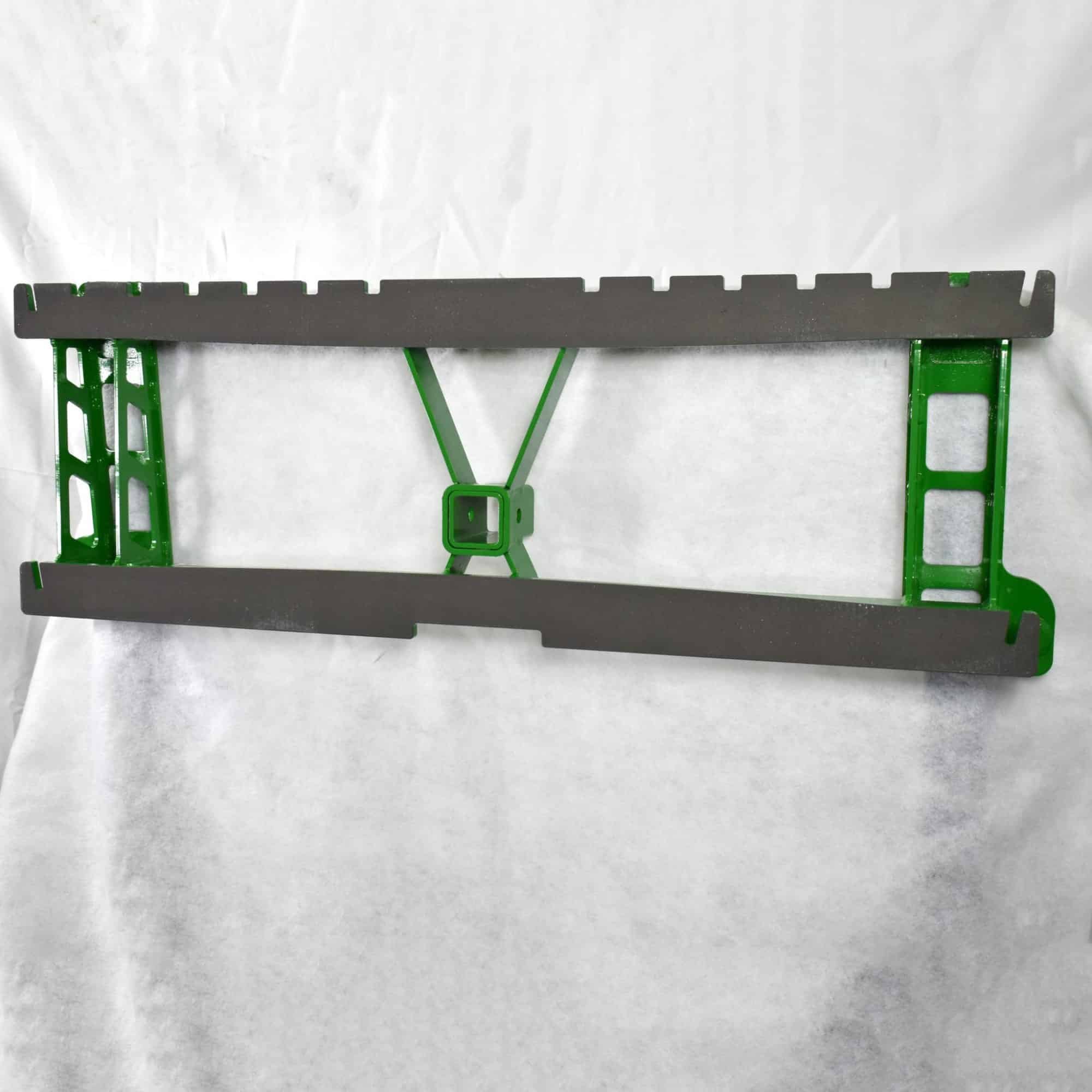

3000 Lb. John Deere Quick Attach Pallet Fork Frame
$798.50
1-, 2-, 3- & 4-series sub-compact tractors or equivalent
Includes built-in 2-inch receiver adapter
Frequently Bought Together
Adjustable Fork Spacing – Forks can be spaced apart from 10 inches (250 mm) to 40 inches (1020 mm) and locked in place
Ground Rail Bevels – Match the fork tines for smooth fork sliding, just like forklift carriages
MIG Welded Construction – Engineered for strength and professionally hand crafted
Quality Materials – Built entirely in USA with high-strength North American steel

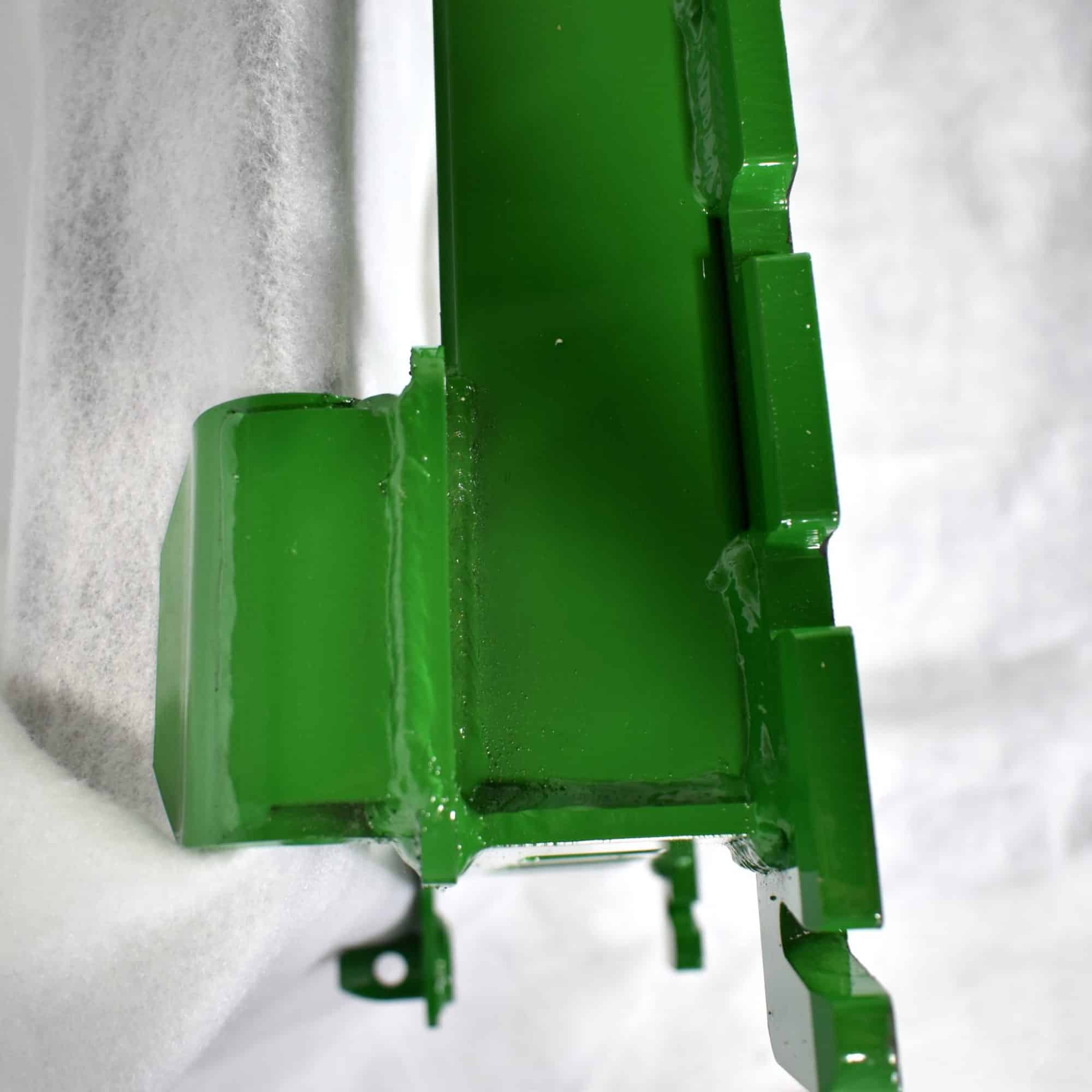

JDQA Hooks – Reinforced with cap plates for extra strength
Durable Protection – Baked on powder coat is augmented by our proprietary graphite coating on the fork rails for the easiest sliding of forks
Chain Slots – For 5/16 inch (8 mm) link chain at all four corners for easy lifting and securing of loads

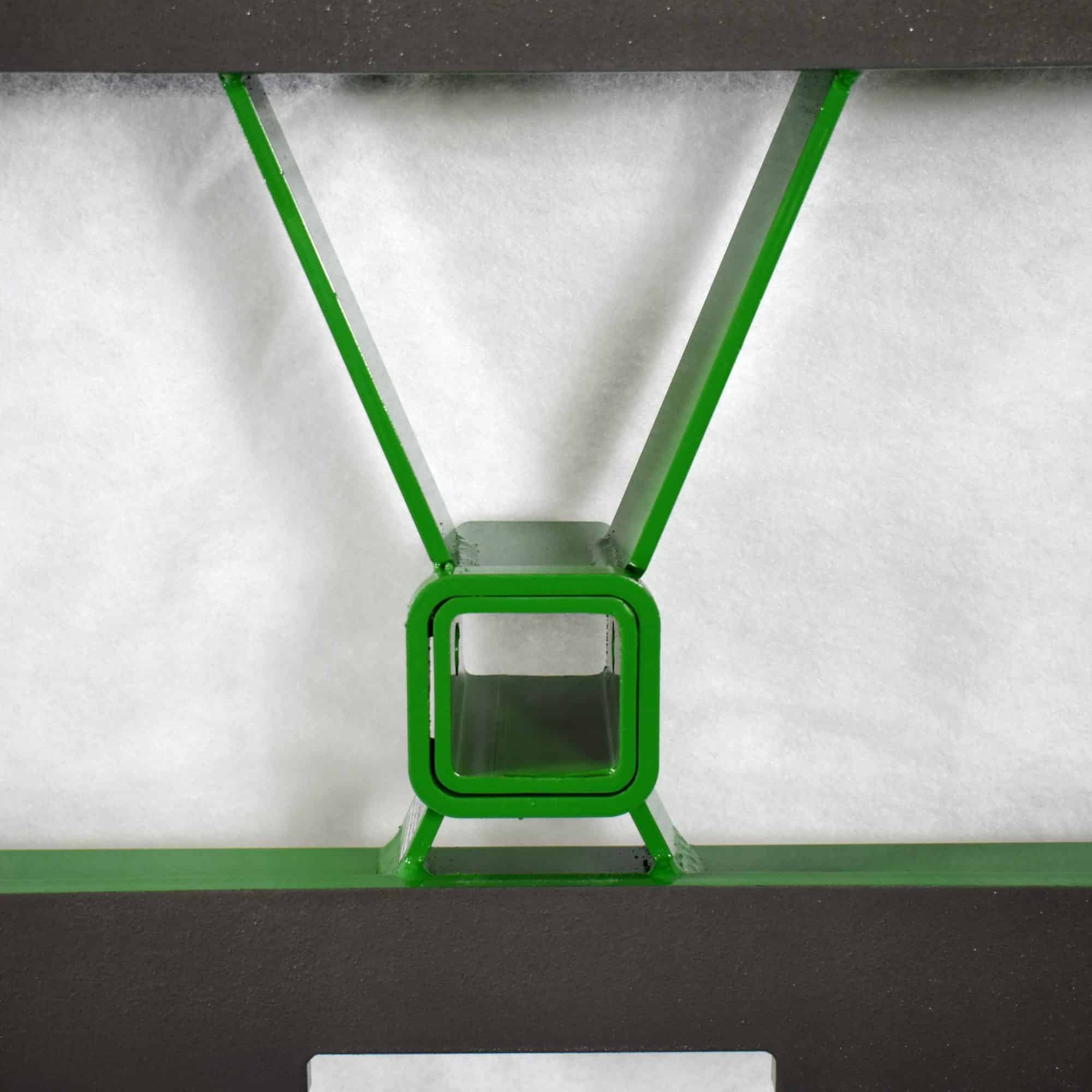

Trussed Frame – Every pound of excess weight is removed without losing strength
Industry Standard Forks – ITA Class II hook type (fixed) fork tines

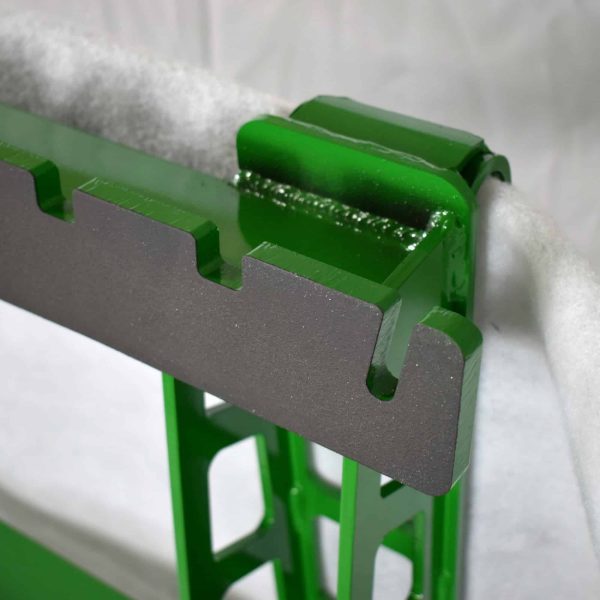

Super High-Strength Upper & Lower Fork Rails – No cheap-formed steel here. Our frames are built like a real forklift carriage. These rails are laser cut from extremely high-strength and wear-resistant North American steel
- Fork frame is designed for a maximum load of 3000 lb. (1360 kg) at 18 inches (46 cm) Load Center. Maximum load may be limited by lower-capacity fork tines.
- Fork frame weight: 91 lbs. (41 kg)
- Frame Rails: ½” thick ASTM A514/T-1 Alloy Steel
- Tubes: ASTM A513 Steel
- Mounting Trusses: ¼” HRPO 1010 Steel
- JDQA Hooks: ¼” ASTM A572 Grade 50 Steel
- JDQA Pins: Low Carbon Steel
- SSQA Plates: ¼” ASTM A572 Grade 50 Steel
- Installation Manual
