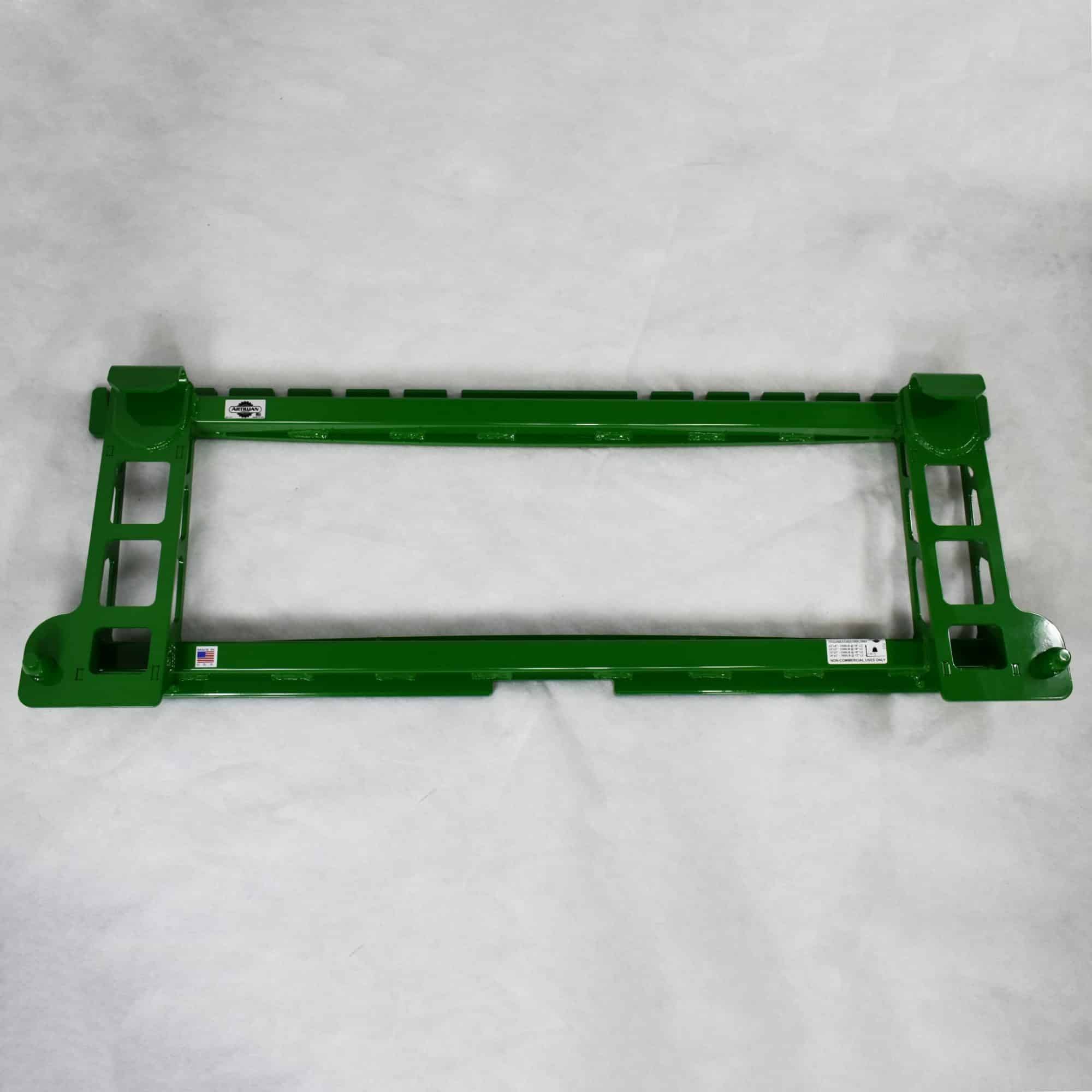

2300 Lb. John Deere Quick Attach Pallet Fork Frame
- 1- & 2-series sub-compact tractors or equivalent
- Available 2-inch receiver adapter
MSRP:$719.00
INTERNET PRICE:$719.00

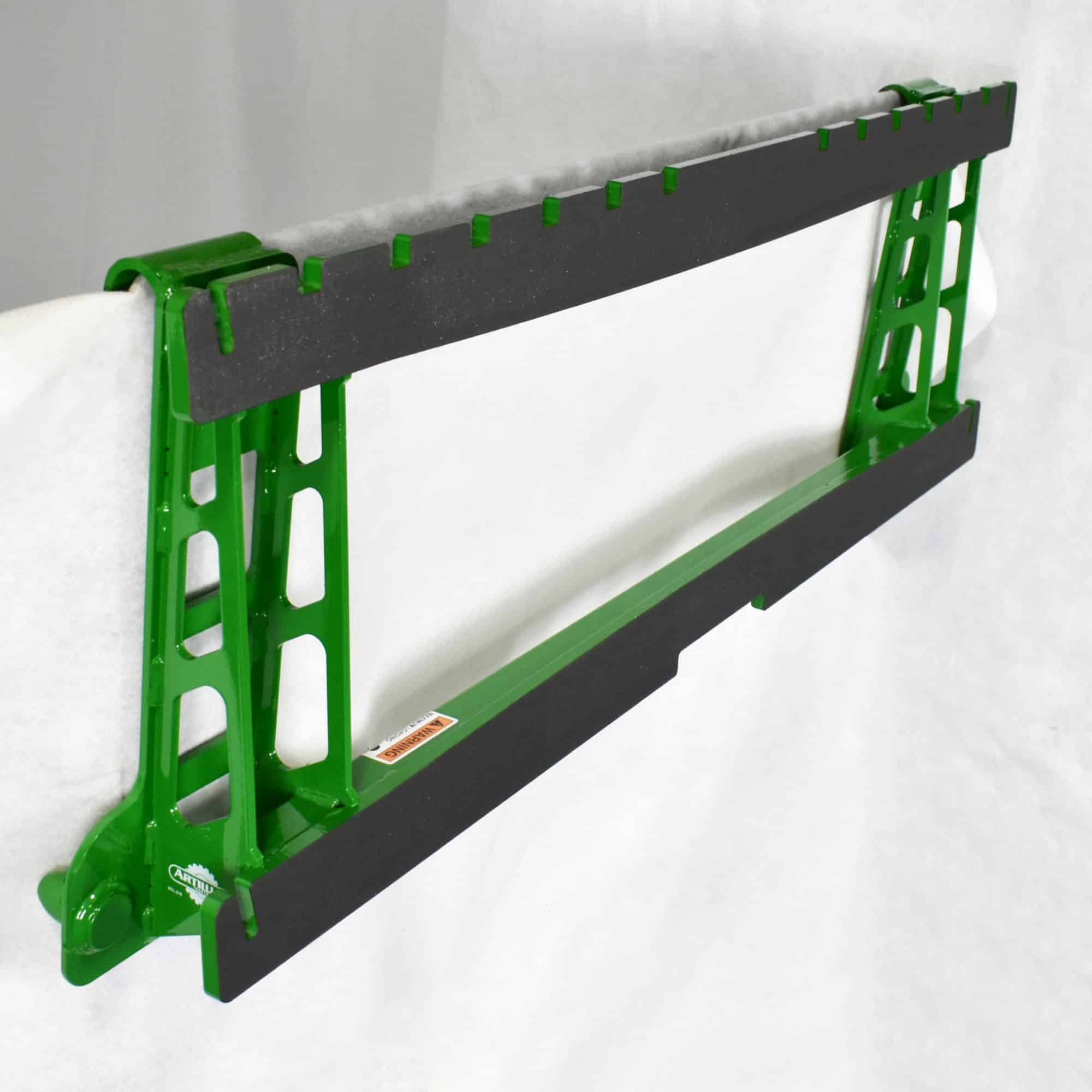

Arched Fork Rails – To maximize strength and minimize weight
Adjustable Fork Spacing – Forks can be spaced apart from 10 inches (250 mm) to 40 inches (1020 mm) and locked in place
Ground Rail Bevels – Match the fork tines for smooth fork sliding, just like forklift carriages
MIG Welded Construction – Engineered for strength and professionally hand crafted

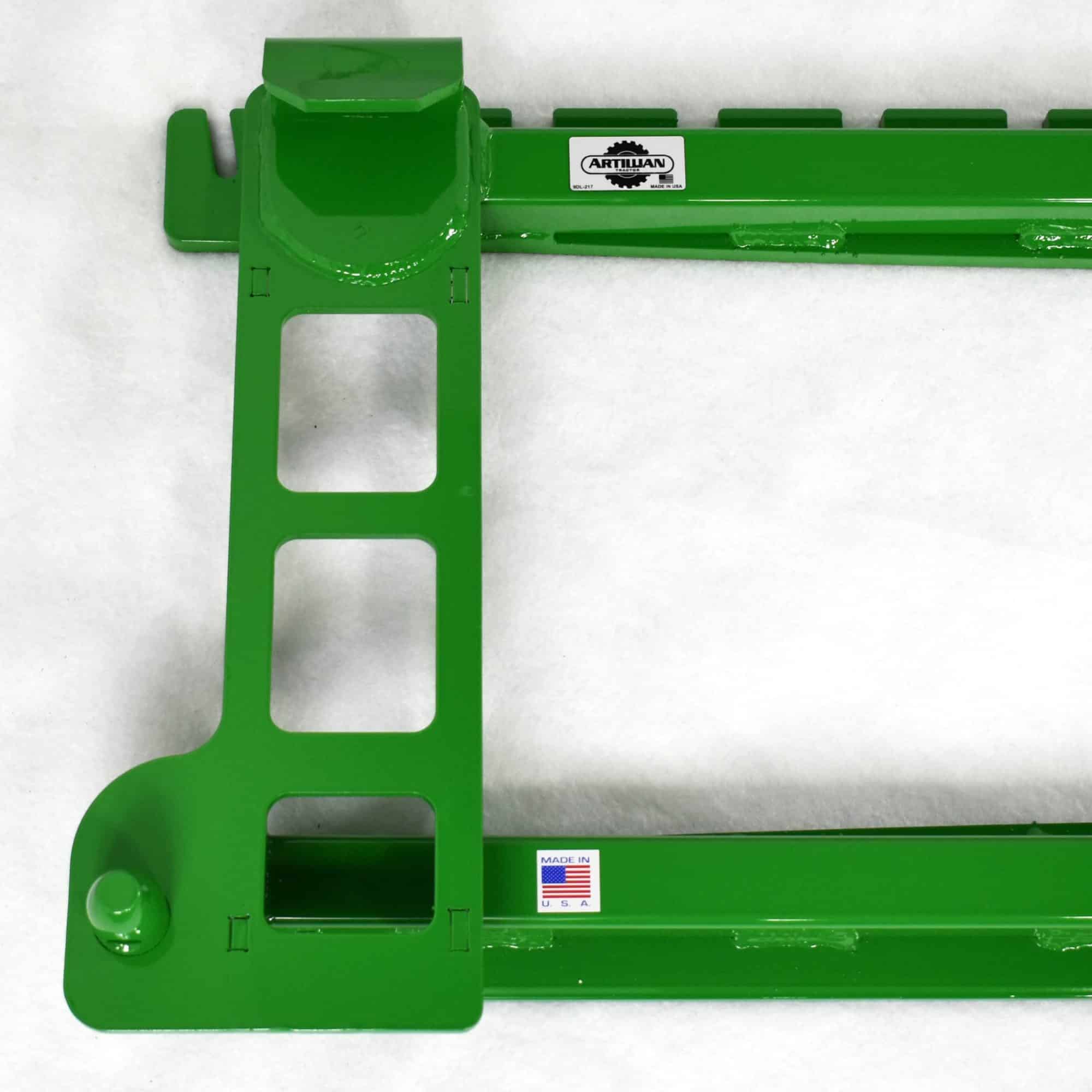

Quality Materials – Built entirely in USA with high-strength North American steel

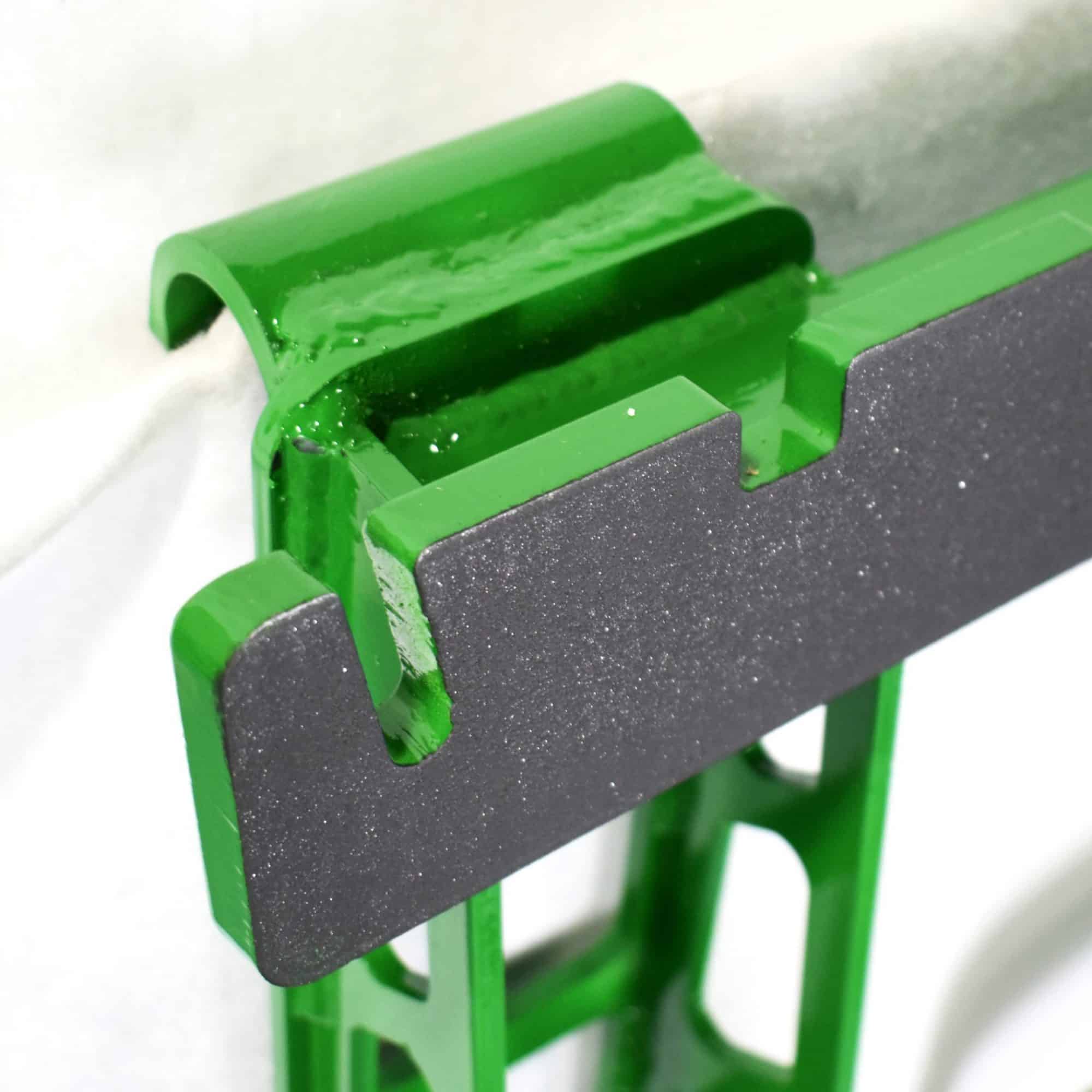

Durable Protection – Baked on powder coat is augmented by our proprietary graphite coating on the fork rails for easiest sliding of forks
Chain Slots – For 5/16 inch (8 mm) link chain at all four corners for easy lifting and securing of loads

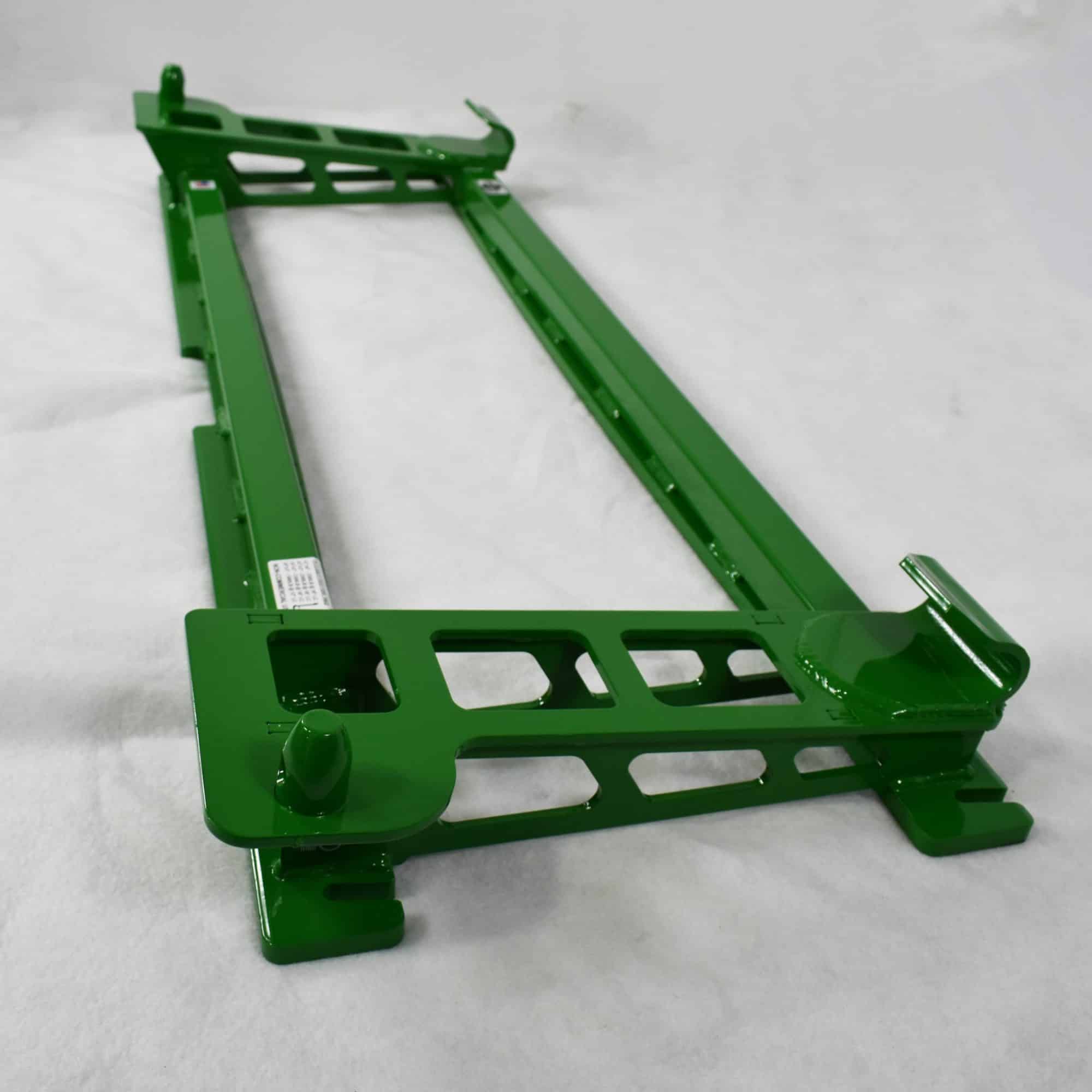

Trussed Frame – Every pound of excess weight is removed without losing strength
Industry Standard Forks – ITA Class II hook type (fixed) fork tines

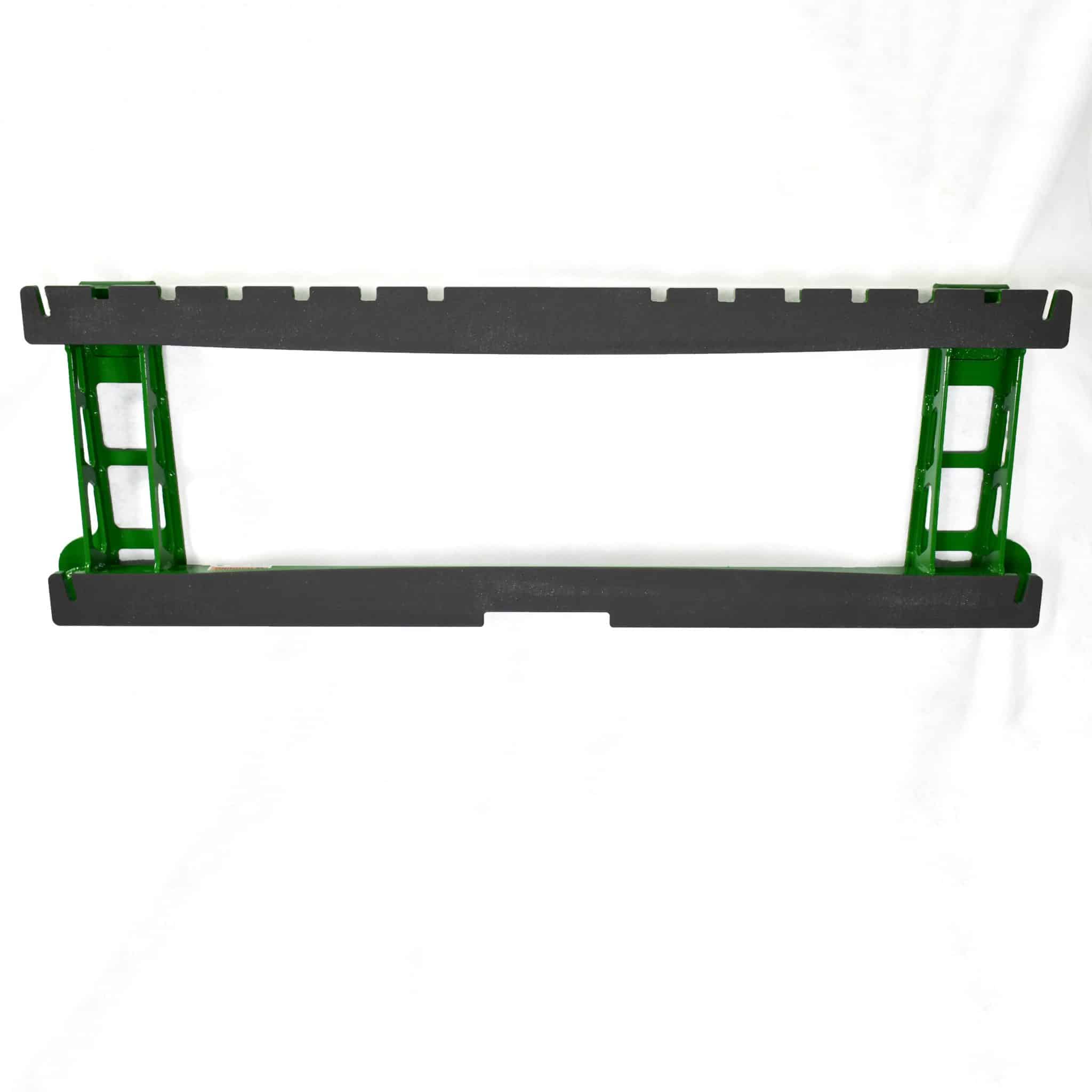

Super High-Strength Upper & Lower Fork Rails – No cheap formed steel here. Our frames are built like a real forklift carriage. These rails are laser cut from extremely high-strength and wear-resistant North American steel
- Frame Rails: ½” thick ASTM A514/T-1 Alloy Steel
- Tubes: ASTM A513 Steel
- Mounting Trusses: ¼” HRPO 1010 Steel

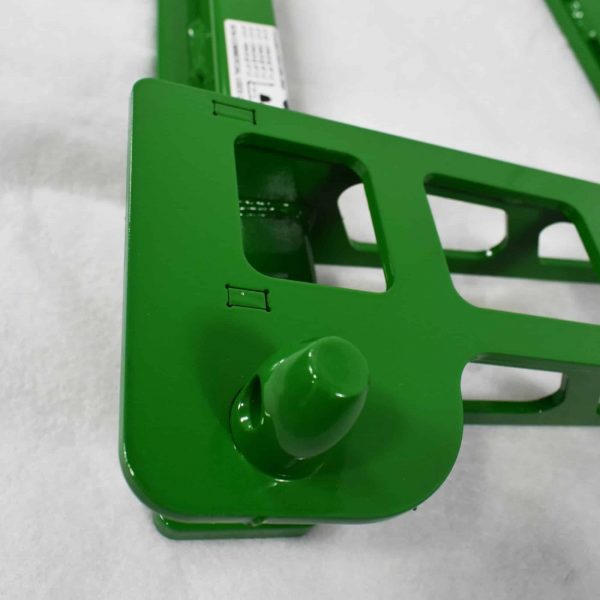

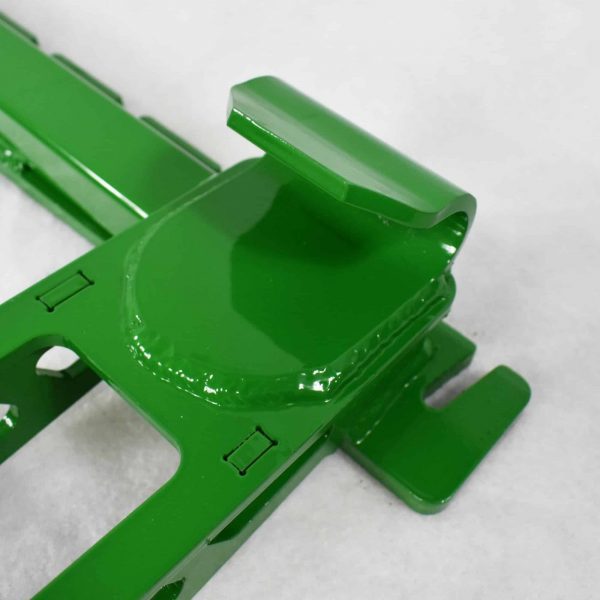

- JDQA Hooks: ¼” ASTM A572 Grade 50 Steel
- JDQA Pins: Low Carbon Steel
- SSQA Plates: ¼” ASTM A572 Grade 50 Steel
- Fork frame is designed for a maximum load of 2300 lbs. (1045 kg) at 18 inches (46 cm) load center. Maximum load may be limited by lower capacity fork tines.
- Fork frame weight: 73 lbs. (33 kg)
- Installation Manual
Note: It is the buyer’s responsibility to choose a fork set with a lift capacity that meets or exceeds your machine maximum lift capacity. 4000 series tractors should not use our 2300 lb. pallet fork sets.
